DCD-12AFEM-LR7A02

Active

Amphenol LTW

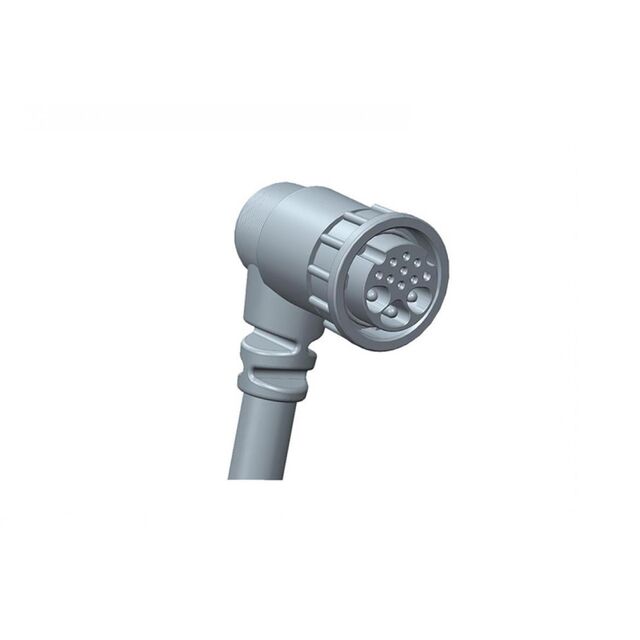

CERES, LARGE SIZE, PLASTIC, 20A+5A, 12 PINS, FEMALE CONNECTOR, MALE (POWER) + FEMALE (SIGNAL) CONTACT, RIGHT ANGLE, 2 POINTS LOC

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A+5A, 12 PINS, FEMALE CONNECTOR, MALE (POWER) + FEMALE (SIGNAL) CONTACT, RIGHT ANGLE, 2 POINTS LOC

Technical Specifications

Parameters and characteristics for this part

Specification	DCD-12AFEM-LR7A02

1st Connector Gender	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	12
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	D
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Shielded
Usage	Industrial Environments

Part	Usage	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions	Shielding	Cable Type	Length [x]	Length [x]	1st Connector Mounting Type	Color	1st Connector Number of Positions Loaded	1st Connector Orientation [custom]	Cable Material	2nd Connector Type	Ingress Protection
Amphenol LTW DCD-12AFEM-LL7A01	Industrial Environments	D	Plug	Female Sockets Male Pins	Standard	12	Shielded	Round	1 m	3.28 ft	Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LR7A05	Industrial Environments	D	Plug Right Angle	Female Sockets Male Pins	Standard	12	Shielded	Round	500 mm	1.64 ft	Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LL7A10	Industrial Environments	D	Plug	Female Sockets Male Pins	Standard	12	Shielded	Round			Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LR7A10	Industrial Environments	D	Plug Right Angle	Female Sockets Male Pins	Standard	12	Shielded	Round			Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LR7A02	Industrial Environments	D	Plug Right Angle	Female Sockets Male Pins	Standard	12	Shielded	Round	2 m	6.56 ft	Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 6.56' (2.00m)
