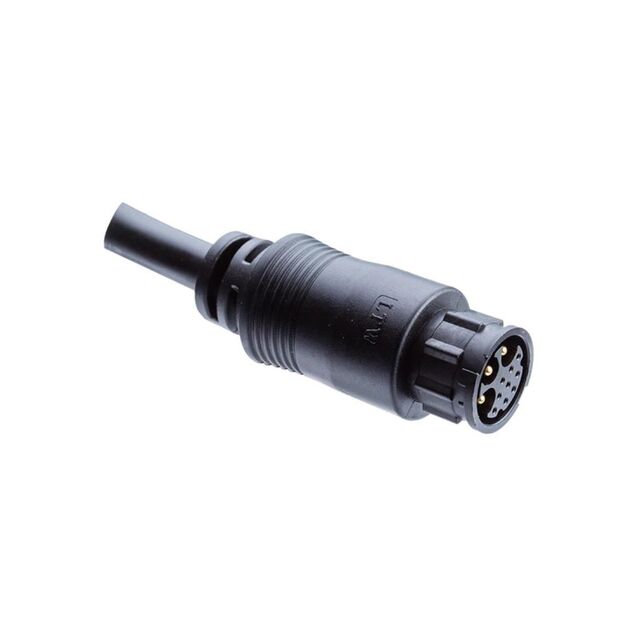

DCD-12AFEM-LL7A01

Active

Amphenol LTW

CIR CBL 12POS PLUG TO WIRE 3.28'

Search across all available documentation for this part.

Active

Amphenol LTW

CIR CBL 12POS PLUG TO WIRE 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	DCD-12AFEM-LL7A01

1st Connector Gender	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	12
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	D
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded
Usage	Industrial Environments

Part	Usage	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions	Shielding	Cable Type	Length [x]	Length [x]	1st Connector Mounting Type	Color	1st Connector Number of Positions Loaded	1st Connector Orientation [custom]	Cable Material	2nd Connector Type	Ingress Protection
Amphenol LTW DCD-12AFEM-LL7A01	Industrial Environments	D	Plug	Female Sockets Male Pins	Standard	12	Shielded	Round	1 m	3.28 ft	Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LR7A05	Industrial Environments	D	Plug Right Angle	Female Sockets Male Pins	Standard	12	Shielded	Round	500 mm	1.64 ft	Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LL7A10	Industrial Environments	D	Plug	Female Sockets Male Pins	Standard	12	Shielded	Round			Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LR7A10	Industrial Environments	D	Plug Right Angle	Female Sockets Male Pins	Standard	12	Shielded	Round			Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof
Amphenol LTW DCD-12AFEM-LR7A02	Industrial Environments	D	Plug Right Angle	Female Sockets Male Pins	Standard	12	Shielded	Round	2 m	6.56 ft	Free Hanging (In-Line)	Black	All	Keyed	Polyvinyl Chloride (PVC)	Wire Leads	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 30.42

General part information

Circular Cable Assembly Shielded 3.28' (1.00m)

Technical documentation and resources

No documents available
