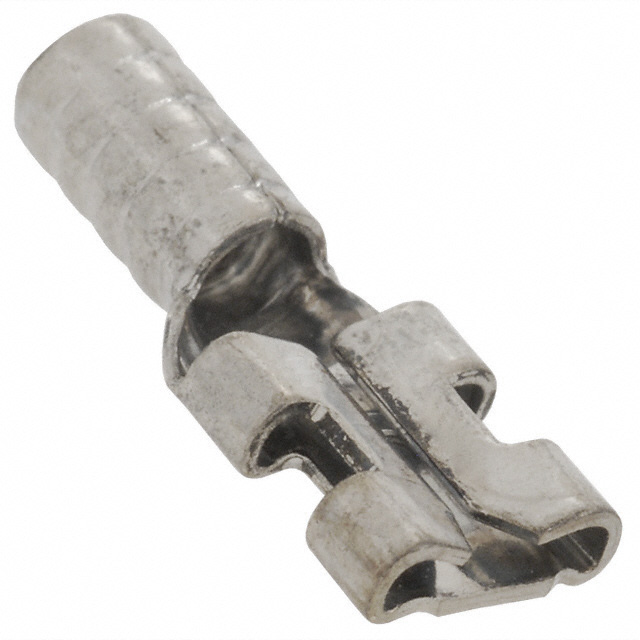

MU18-187DFK
Active3M
NON-INSULATED BUTTED SEAM FEMALE DISCONNECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MU18-187DFK
Active3M
NON-INSULATED BUTTED SEAM FEMALE DISCONNECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MU18-187DFK | MU18 Series |
|---|---|---|
| Color | - | Red |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | Brass | Brass, ETP, Copper, Steel |
| Features | Butted Seam | Butted Seam |
| Gender | Female | Female, Male |
| Insulation | Non-Insulated | Non-Insulated, Fully Insulated |
| Length - Overall [x] | 0.58 in | 0.58 - 0.74 in |
| Length - Overall [x] | 14.73 mm | 14.73 - 18.8 mm |
| Length - Ring Center to Termination | - | 0.25 in |
| Length - Ring Center to Termination | - | 6.35 mm |
| Length - Ring Center to Termination | - | 0.29 in |
| Length - Ring Center to Termination | - | 7.37 mm |
| Length - Termination | - | 6.35 mm |
| Length - Termination | - | 0.25 " |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | - | 8 Stud |
| Stud/Tab Size | - | 4 - 10 Stud |
| Tab Thickness | 0.02 " | 0.02 - 0.032 " |
| Tab Thickness | 0.51 mm | 0.51 - 0.81 mm |
| Tab Width | 4.75 mm | 4.75 - 6.35 mm |
| Tab Width | 0.187 in | 0.187 - 0.25 in |
| Terminal Type | Standard | Flag, Angled - 90°, Circular, Standard, Snap, Spring, Flanged, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | - | 0.03 in |
| Thickness | - | 0.76 mm |
| Width - Outer Edges | - | 7.87 - 8.64 mm |
| Width - Outer Edges | - | 0.25 - 0.31 in |
| Width - Outer Edges | - | 6.35 mm |
| Width - Outer Edges | - | 0.34 in |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
MU18 Series
NON-INSULATED BUTTED SEAM FEMALE DISCONNECT FLAG TERMINAL ROHS COMPLIANT: YES
| Part | Contact Material | Features | Mounting Type | Terminal Type | Gender | Termination | Tab Thickness | Tab Thickness | Contact Finish | Tab Width | Tab Width | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Thickness | Thickness | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges [y] | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Width - Outer Edges [y] | Length - Termination | Length - Termination [x] | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Number of Wire Entries | Width - Outer Edges | Length - Ring Center to Termination | Length - Ring Center to Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Butted Seam | Free Hanging (In-Line), Right Angle | Angled - 90°, Flag | Female | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | |||||||||||||||||||
Copper, ETP | Free Hanging (In-Line) | Circular | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 0.03 in | 0.76 mm | 8 Stud | 7.87 mm | 0.31 in | 18.8 mm | 0.74 in | ||||||||||||||||||
Copper, ETP | Free Hanging (In-Line) | Circular | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 0.03 in | 0.76 mm | 0.25 " | 15.24 mm | 0.6 in | 4 Stud | 6.35 mm | ||||||||||||||||||
Brass | Butted Seam | Free Hanging (In-Line) | Standard | Female | Crimp | 0.032 in | 0.81 mm | Tin | 6.35 mm | 0.25 in | 22 AWG | 17.5 AWG | Non-Insulated | 16.76 mm | 0.66 in | |||||||||||||||||
Copper, ETP | Butted Seam | Free Hanging (In-Line) | Standard | Male | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | 16.26 mm | 0.64 in | |||||||||||||||||
Copper, ETP | Free Hanging (In-Line) | Snap, Spring | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 8 Stud | 17.27 mm | 0.68 in | 6.35 mm | 0.25 " | 0.25 in | 6.35 mm | ||||||||||||||||||
Copper, ETP | Butted Seam | Free Hanging (In-Line) | Flanged | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 16.5 mm | 0.65 " | 10 Stud | 6.35 mm | 0.25 " | 0.25 in | 6.35 mm | |||||||||||||||||
Copper | Butted Seam | Free Hanging (In-Line) | Standard | Male | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | 16.26 mm | 0.64 in | |||||||||||||||||
Copper | Butted Seam | Free Hanging (In-Line) | Standard | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 16.5 mm | 0.65 " | 10 Stud | 6.35 mm | 0.25 " | 0.25 in | 6.35 mm | |||||||||||||||||
Brass | Butted Seam | Free Hanging (In-Line) | Standard | Female | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | 14.73 mm | 0.58 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MU18 Series
0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
