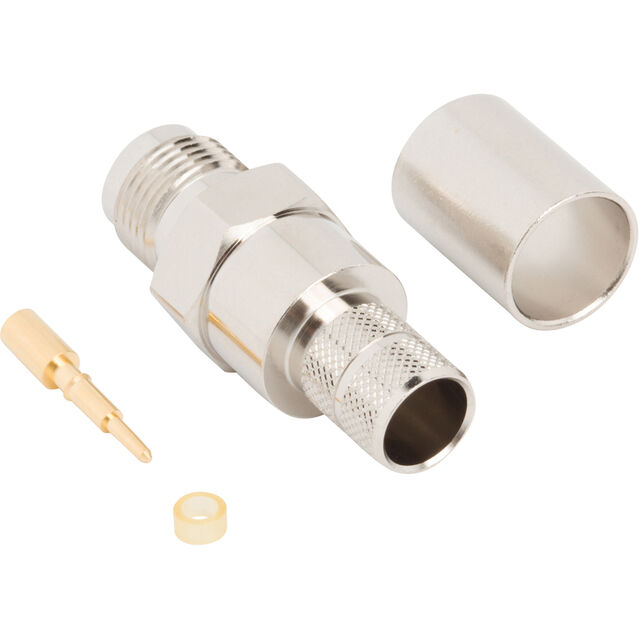

031-6875

Active

AMPHENOL RF

RF CONNECTOR RP-TNC STRAIGHT CRI

Deep-Dive with AI

Search across all available documentation for this part.

031-6875

Active

AMPHENOL RF

RF CONNECTOR RP-TNC STRAIGHT CRI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.75
		10	$ 13.08
		25	$ 12.57
		50	$ 12.07
		100	$ 11.40

Description

General part information

031-68 Series

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6875	031-68 Series

Body Finish	Nickel	Chromate, Nickel
Body Material	Brass	Brass, Phosphor Bronze
Cable Group	LMR-400	RG-178, LMR-400, LMR-240, LMR-195, 178B, 196A, M17/93-RG178, 196, 178A
Cable Group	-	196
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	RP-TNC	BNC, TNC, RP-TNC
Connector Type	Male Pin, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Features	-	Extended Insulation
Frequency - Max [Max]	8 GHz	4 - 6000 GHz
Housing Color	Silver	Black, Silver
Impedance	50 Ohms	50 Ohms
Includes	-	1 Connector, 1 Ferrule, 1 Contact, 1 Insulator, 1 Lockwasher, 1 Nut
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut, Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Solder

031-68 Series

BNC STRAIGHT CRIMP JACK RG-178 R

Part	Contact Termination	Mounting Feature	Cable Group	Cable Group	Body Finish	Connector Type	Impedance	Connector Style	Mating Cycles	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Frequency - Max [Max]	Shield Termination	Center Contact Material	Center Contact Plating	Dielectric Material	Fastening Type	Housing Color	Mounting Type	Includes	Features
AMPHENOL RF 031-6843-BC	Crimp	Bulkhead - Front Side Nut	196	RG-178	Chromate	Female Socket, Jack	50 Ohms	BNC	500	1	85 °C	-40 °C	Brass	4 GHz	Crimp	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Black
AMPHENOL RF 031-6872	Solder			LMR-400	Nickel	Male Pin, Plug	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)
AMPHENOL RF 031-6825	Solder			LMR-240	Nickel	Male Pin, Plug	50 Ohms	TNC	500	1	130 °C	-40 °C	Brass	6000 MHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)	1 Connector, 1 Ferrule
AMPHENOL RF 031-6887	Solder	Flange			Nickel	Female Socket, Jack	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	11 GHz	Solder	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)		Silver			Extended Insulation
AMPHENOL RF 031-6877	Solder	Bulkhead - Front Side Nut		LMR-400	Nickel	Jack, Male Pin	50 Ohms	RP-TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver
AMPHENOL RF 031-6821	Solder			LMR-195	Nickel	Male Pin, Plug	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	6000 MHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)	1 Connector, 1 Ferrule
AMPHENOL RF 031-6861	Solder			LMR-240	Nickel	Male Pin, Plug	50 Ohms	BNC	500	1	165 °C	-65 ░C	Phosphor Bronze	12.4 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver	Free Hanging (In-Line)	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
AMPHENOL RF 031-6875	Solder			LMR-400	Nickel	Jack, Male Pin	50 Ohms	RP-TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)
AMPHENOL RF 031-6843	Crimp	Bulkhead - Front Side Nut		178A, 178B, 196, 196A, M17/93-RG178, RG-178	Nickel	Female Socket, Jack	50 Ohms	BNC	500	1	85 °C	-40 °C	Brass	4 GHz	Crimp	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver		1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
AMPHENOL RF 031-6874	Solder	Bulkhead - Front Side Nut		LMR-400	Nickel	Female Socket, Jack	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)		Silver
