031-6861

Active

AMPHENOL RF

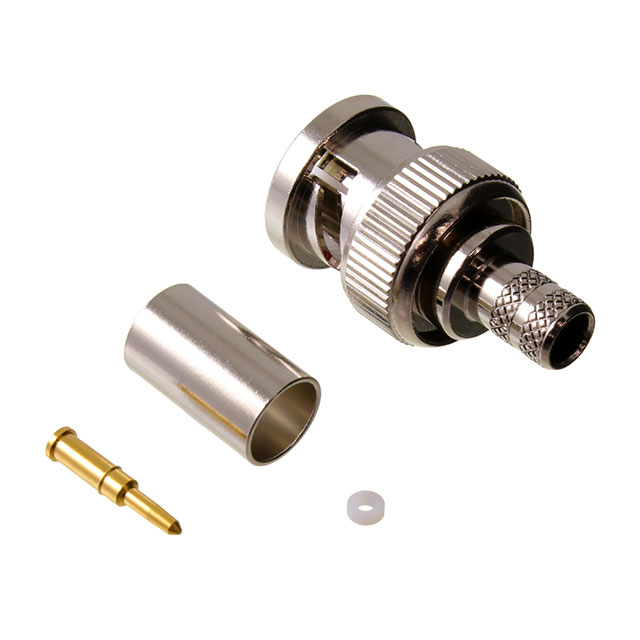

BNC STRAIGHT CRIMP PLUG FOR LMR-

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

031-6861

Active

AMPHENOL RF

BNC STRAIGHT CRIMP PLUG FOR LMR-

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.13
		10	$ 8.54
		25	$ 7.72
		50	$ 7.16
		100	$ 6.65
		250	$ 6.05
		500	$ 5.65
		1000	$ 5.28

Description

General part information

031-68 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6861	031-68 Series

Body Finish	Nickel	Chromate, Nickel
Body Material	Phosphor Bronze	Brass, Phosphor Bronze
Cable Group	LMR-240	RG-178, LMR-400, LMR-240, LMR-195, 178B, 196A, M17/93-RG178, 196, 178A
Cable Group	-	196
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC, TNC, RP-TNC
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Extended Insulation
Frequency - Max [Max]	12.4 GHz	4 - 6000 GHz
Housing Color	Silver	Black, Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule	1 Connector, 1 Ferrule, 1 Contact, 1 Insulator, 1 Lockwasher, 1 Nut
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut, Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Solder

031-68 Series

BNC STRAIGHT CRIMP JACK RG-178 R

Part	Contact Termination	Mounting Feature	Cable Group	Cable Group	Body Finish	Connector Type	Impedance	Connector Style	Mating Cycles	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Frequency - Max [Max]	Shield Termination	Center Contact Material	Center Contact Plating	Dielectric Material	Fastening Type	Housing Color	Mounting Type	Includes	Features
AMPHENOL RF 031-6843-BC	Crimp	Bulkhead - Front Side Nut	196	RG-178	Chromate	Female Socket, Jack	50 Ohms	BNC	500	1	85 °C	-40 °C	Brass	4 GHz	Crimp	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Black
AMPHENOL RF 031-6872	Solder			LMR-400	Nickel	Male Pin, Plug	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)
AMPHENOL RF 031-6825	Solder			LMR-240	Nickel	Male Pin, Plug	50 Ohms	TNC	500	1	130 °C	-40 °C	Brass	6000 MHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)	1 Connector, 1 Ferrule
AMPHENOL RF 031-6887	Solder	Flange			Nickel	Female Socket, Jack	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	11 GHz	Solder	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)		Silver			Extended Insulation
AMPHENOL RF 031-6877	Solder	Bulkhead - Front Side Nut		LMR-400	Nickel	Jack, Male Pin	50 Ohms	RP-TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver
AMPHENOL RF 031-6821	Solder			LMR-195	Nickel	Male Pin, Plug	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	6000 MHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)	1 Connector, 1 Ferrule
AMPHENOL RF 031-6861	Solder			LMR-240	Nickel	Male Pin, Plug	50 Ohms	BNC	500	1	165 °C	-65 ░C	Phosphor Bronze	12.4 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver	Free Hanging (In-Line)	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
AMPHENOL RF 031-6875	Solder			LMR-400	Nickel	Jack, Male Pin	50 Ohms	RP-TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Brass	Gold	Polytetrafluoroethylene (PTFE)		Silver	Free Hanging (In-Line)
AMPHENOL RF 031-6843	Crimp	Bulkhead - Front Side Nut		178A, 178B, 196, 196A, M17/93-RG178, RG-178	Nickel	Female Socket, Jack	50 Ohms	BNC	500	1	85 °C	-40 °C	Brass	4 GHz	Crimp	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver		1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
AMPHENOL RF 031-6874	Solder	Bulkhead - Front Side Nut		LMR-400	Nickel	Female Socket, Jack	50 Ohms	TNC	500	1	165 °C	-65 ░C	Brass	8 GHz	Crimp	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)		Silver
