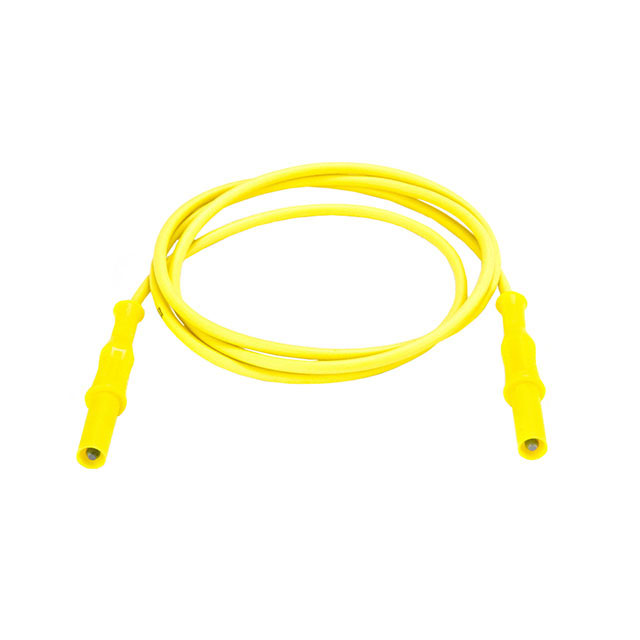

CT2162-10-4

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2162-10-4

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 4"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT2162-10-4	CT2162 Series

1st Connector	Sheathed, Single, Banana Plug	Sheathed, Single, Banana Plug
2nd Connector	Banana Plug, Single, Sheathed	Banana Plug, Single, Sheathed
Cable Length	-	1.5 - 250 mm
Cable Length	-	9.8 - 78.7 in
Cable Length [x]	4 in	4 in
Cable Length [x]	101.6 mm	101.6 mm
Configuration	Banana to Banana	Banana to Banana
Contents	Yellow, 1 Lead	Red, Yellow, 1 Lead, 1 Lead, Blue, 1 Lead, White, 1 Lead, Black
Contents	-	1
Current Rating (Amps)	12 A	12 A
Material - Insulation	Silicone	Silicone
Ratings	CAT IV 1000V	CAT IV 1000V
Stacking Method	Non Stackable	Non Stackable
Type	Patch Cord	Patch Cord
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	1000 V
Wire Gauge	18 AWG	18 AWG

CT2162 Series

TEST LEAD BANANA TO BANANA 4"

Part	Voltage - Rated	Voltage - Rated	Wire Gauge	Cable Length [x]	Cable Length [x]	Type	Material - Insulation	Stacking Method	Ratings	1st Connector	Contents [custom]	Contents	2nd Connector	Configuration	Current Rating (Amps)	Cable Length	Cable Length
Cal Test Electronics CT2162-10-2	1 kV	1000 V	18 AWG	4 in	101.6 mm	Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single	1	Red	Banana Plug, Single, Sheathed	Banana to Banana	12 A
Cal Test Electronics CT2162-25-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single			Banana Plug, Single, Sheathed	Banana to Banana	12 A	250 mm	9.8 in
Cal Test Electronics CT2162-150-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single			Banana Plug, Single, Sheathed	Banana to Banana	12 A	1.5 m	59.1 in
Cal Test Electronics CT2162-100-4	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, Yellow	Banana Plug, Single, Sheathed	Banana to Banana	12 A	100 cm	39.4 in
Cal Test Electronics CT2162-100-6	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, Blue	Banana Plug, Single, Sheathed	Banana to Banana	12 A	100 cm	39.4 in
Cal Test Electronics CT2162-50-9	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, White	Banana Plug, Single, Sheathed	Banana to Banana	12 A	50 cm	19.7 in
Cal Test Electronics CT2162-10-4	1 kV	1000 V	18 AWG	4 in	101.6 mm	Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, Yellow	Banana Plug, Single, Sheathed	Banana to Banana	12 A
Cal Test Electronics CT2162-100-2	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single	1	Red	Banana Plug, Single, Sheathed	Banana to Banana	12 A	100 cm	39.4 in
Cal Test Electronics CT2162-200-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single			Banana Plug, Single, Sheathed	Banana to Banana	12 A	2 m	78.7 in
Cal Test Electronics CT2162-200-2	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single	1	Red	Banana Plug, Single, Sheathed	Banana to Banana	12 A	2 m	78.7 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.15

Description

General part information

CT2162 Series

4.0" (101.60mm) Banana Plug, Single, Sheathed To Banana Plug, Single, Sheathed Patch Cord 1000V (1kV)

Documents

Technical documentation and resources
