CT2162-50-9

Active

Cal Test Electronics

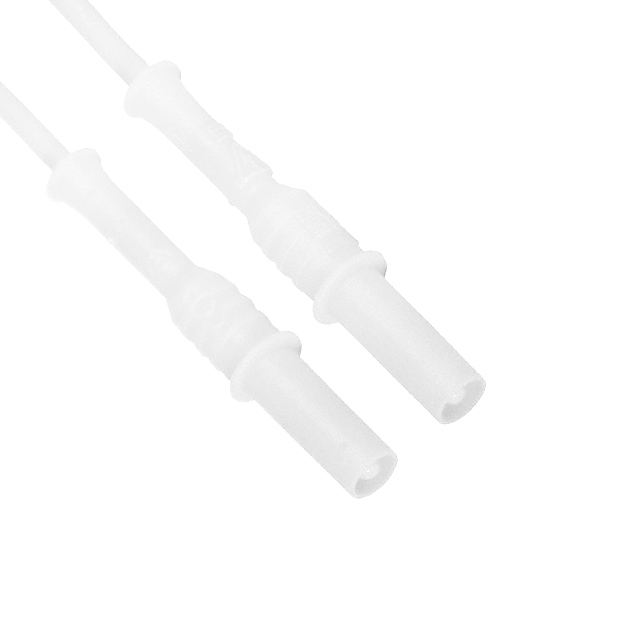

TEST LEAD BANANA TO BANANA 19.7"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2162-50-9

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 19.7"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 11.00

Description

General part information

CT2162 Series

19.7" (500.00mm) Banana Plug, Single, Sheathed To Banana Plug, Single, Sheathed Patch Cord 1000V (1kV)

Documents

Technical documentation and resources

Datasheet

Specification	CT2162-50-9	CT2162 Series

1st Connector	Sheathed, Single, Banana Plug	Sheathed, Single, Banana Plug
2nd Connector	Banana Plug, Single, Sheathed	Banana Plug, Single, Sheathed
Cable Length	50 cm	1.5 - 250 mm
Cable Length	19.7 in	9.8 - 78.7 in
Cable Length	-	4 in
Cable Length	-	101.6 mm
Configuration	Banana to Banana	Banana to Banana
Contents	1 Lead, White	Red, Yellow, 1 Lead, 1 Lead, Blue, 1 Lead, White, 1 Lead, Black
Contents	-	1
Current Rating (Amps)	12 A	12 A
Material - Insulation	Silicone	Silicone
Ratings	CAT IV 1000V	CAT IV 1000V
Stacking Method	Non Stackable	Non Stackable
Type	Patch Cord	Patch Cord
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	1000 V
Wire Gauge	18 AWG	18 AWG

Part	Voltage - Rated	Voltage - Rated	Wire Gauge	Cable Length [x]	Cable Length [x]	Type	Material - Insulation	Stacking Method	Ratings	1st Connector	Contents [custom]	Contents	2nd Connector	Configuration	Current Rating (Amps)	Cable Length	Cable Length
Cal Test Electronics CT2162-10-2	1 kV	1000 V	18 AWG	4 in	101.6 mm	Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single	1	Red	Banana Plug, Single, Sheathed	Banana to Banana	12 A
Cal Test Electronics CT2162-25-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single			Banana Plug, Single, Sheathed	Banana to Banana	12 A	250 mm	9.8 in
Cal Test Electronics CT2162-150-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single			Banana Plug, Single, Sheathed	Banana to Banana	12 A	1.5 m	59.1 in
Cal Test Electronics CT2162-100-4	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, Yellow	Banana Plug, Single, Sheathed	Banana to Banana	12 A	100 cm	39.4 in
Cal Test Electronics CT2162-100-6	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, Blue	Banana Plug, Single, Sheathed	Banana to Banana	12 A	100 cm	39.4 in
Cal Test Electronics CT2162-50-9	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, White	Banana Plug, Single, Sheathed	Banana to Banana	12 A	50 cm	19.7 in
Cal Test Electronics CT2162-10-4	1 kV	1000 V	18 AWG	4 in	101.6 mm	Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single		1 Lead, Yellow	Banana Plug, Single, Sheathed	Banana to Banana	12 A
Cal Test Electronics CT2162-100-2	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single	1	Red	Banana Plug, Single, Sheathed	Banana to Banana	12 A	100 cm	39.4 in
Cal Test Electronics CT2162-200-5	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single			Banana Plug, Single, Sheathed	Banana to Banana	12 A	2 m	78.7 in
Cal Test Electronics CT2162-200-2	1 kV	1000 V	18 AWG			Patch Cord	Silicone	Non Stackable	CAT IV 1000V	Banana Plug, Sheathed, Single	1	Red	Banana Plug, Single, Sheathed	Banana to Banana	12 A	2 m	78.7 in
