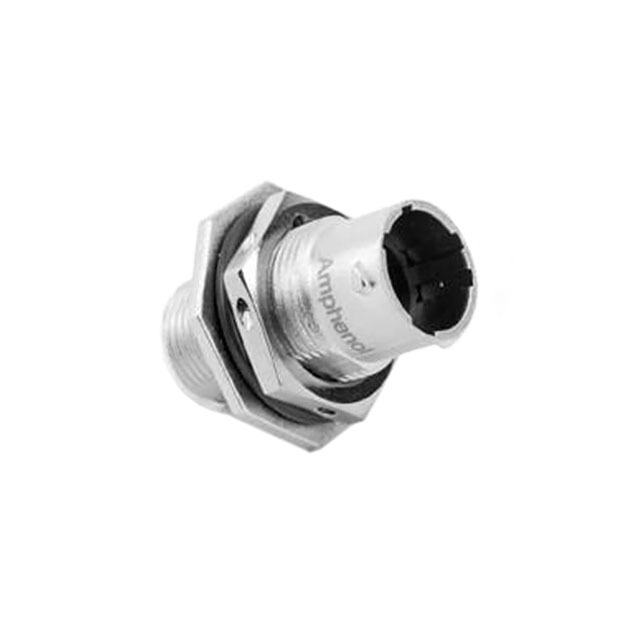

RT07102PNH
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
RT07102PNH
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT07102PNH |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 (2), 16 (2) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 10-2 |
| Shielding | Shielded |
| Type | For Male Pins |
RT07102 Series
| Part | Mounting Feature | Shell Size - Insert | Orientation | Type | Contact Type | Contact Shape | Connector Type | Note | Number of Positions | Insert Material | Shell Material | Housing Color | Fastening Type | Features | Shielding | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Material Flammability Rating | Contact Size | Shell Finish | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Bulkhead - Front Side Nut | 10-2 | N | For Male Pins | Crimp | Circular | Receptacle Housing | Contacts Not Included | 2 | Thermoplastic | Zinc Alloy | Silver | Bayonet Lock | Cap (Cover) | Shielded | IP67 - Dust Tight Waterproof | 125 °C | -40 °C | Metal | UL94 V-0 | 16 (2) 20 (2) | Nickel | |
Amphenol Sine Systems Corp | Bulkhead - Front Side Nut | 10-2 | N | For Male Pins | Crimp | Circular | Receptacle Housing | Contacts Not Included | 4 | Thermoplastic | Zinc Alloy | Silver | Bayonet Lock | Shielded | IP67 - Dust Tight Waterproof | 105 ░C | -40 °C | UL94 V-0 | 16 (2) 20 (2) | Nickel | |||
Amphenol Sine Systems Corp | Bulkhead - Front Side Nut | 10-2 | N | For Female Sockets | Crimp | Circular | Receptacle Housing | Contacts Not Included | 4 | Thermoplastic | Zinc Alloy | Silver | Bayonet Lock | Shielded | IP67 - Dust Tight Waterproof | 105 ░C | -40 °C | UL94 V-0 | 16 (2) 20 (2) | Nickel | |||
Amphenol Sine Systems Corp | Bulkhead - Front Side Nut | 10-2 | N | For Male Pins | Crimp | Circular | Receptacle Housing | Contacts Not Included | 4 | Thermoplastic | Zinc Alloy | Silver | Bayonet Lock | Shielded | IP67 - Dust Tight Waterproof | 125 °C | -40 °C | UL94 V-0 | 16 (2) 20 (2) | Nickel | 1 Connector 1 Gasket 1 Nut 1 O-Ring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 13.06 | |
Description
General part information
RT07102 Series
4 Position Circular Connector Receptacle Housing Panel Mount
