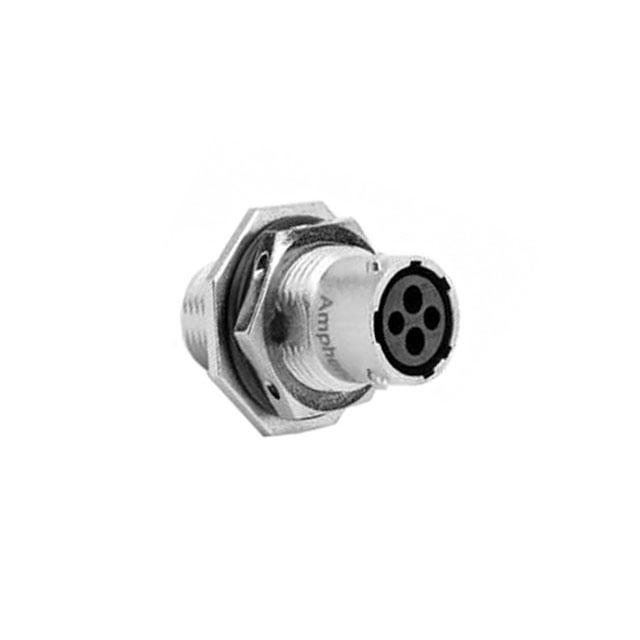

RT07102SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	RT07102SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20 (2), 16 (2)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-2
Shielding	Shielded
Type	For Female Sockets

Part	Mounting Feature	Shell Size - Insert	Orientation	Type	Contact Type	Contact Shape	Connector Type	Note	Number of Positions	Insert Material	Shell Material	Housing Color	Fastening Type	Features	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Material Flammability Rating	Contact Size	Shell Finish	Includes
Amphenol Sine Systems Corp RT07102PNHEC03	Bulkhead - Front Side Nut	10-2	N	For Male Pins	Crimp	Circular	Receptacle Housing	Contacts Not Included	2	Thermoplastic	Zinc Alloy	Silver	Bayonet Lock	Cap (Cover)	Shielded	IP67 - Dust Tight Waterproof	125 °C	-40 °C	Metal	UL94 V-0	16 (2) 20 (2)	Nickel
Amphenol Sine Systems Corp RT07102PNH	Bulkhead - Front Side Nut	10-2	N	For Male Pins	Crimp	Circular	Receptacle Housing	Contacts Not Included	4	Thermoplastic	Zinc Alloy	Silver	Bayonet Lock		Shielded	IP67 - Dust Tight Waterproof	105 ░C	-40 °C		UL94 V-0	16 (2) 20 (2)	Nickel
Amphenol Sine Systems Corp RT07102SNH	Bulkhead - Front Side Nut	10-2	N	For Female Sockets	Crimp	Circular	Receptacle Housing	Contacts Not Included	4	Thermoplastic	Zinc Alloy	Silver	Bayonet Lock		Shielded	IP67 - Dust Tight Waterproof	105 ░C	-40 °C		UL94 V-0	16 (2) 20 (2)	Nickel
Amphenol Sine Systems Corp RT07102PNH03	Bulkhead - Front Side Nut	10-2	N	For Male Pins	Crimp	Circular	Receptacle Housing	Contacts Not Included	4	Thermoplastic	Zinc Alloy	Silver	Bayonet Lock		Shielded	IP67 - Dust Tight Waterproof	125 °C	-40 °C		UL94 V-0	16 (2) 20 (2)	Nickel	1 Connector 1 Gasket 1 Nut 1 O-Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.06

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
