929710-06-34

Active

3M (TC)

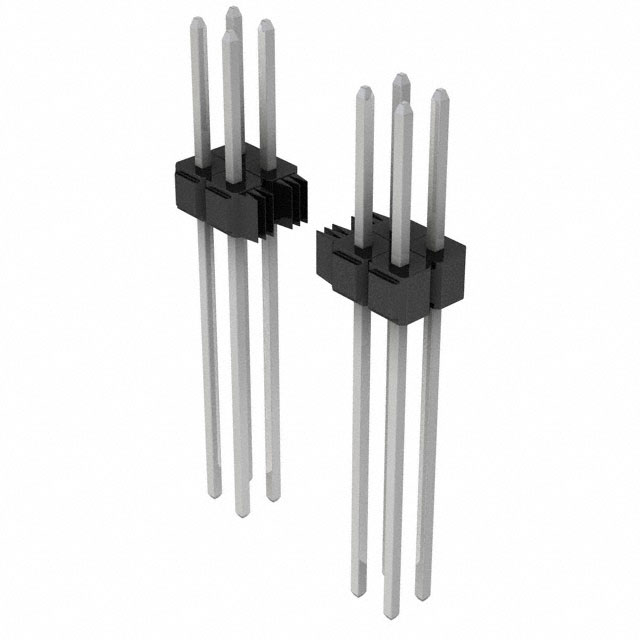

CONN HEADER VERT 68POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929710-06-34

Active

3M (TC)

CONN HEADER VERT 68POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929710-06-34

Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.71 "
Contact Length - Post	18.03 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	28.65 mm
Overall Contact Length	1.128 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929710 Series

...

Part	Connector Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions Loaded	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Contact Type	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Insulation Material	Contact Material	Shrouding	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Termination	Overall Contact Length [x]	Overall Contact Length [x]	Mounting Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Length - Post [x]	Overall Contact Length
3M (TC) 929710-10-36	Header	Tin-Lead	4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	72	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin
3M (TC) 929710-10-20	Header	Tin-Lead	4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	40	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin
3M (TC) 929710-06-34	Header	Tin-Lead	18.03 mm	0.71 "	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	68	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin	28.65 mm	1.128 "
3M (TC) 929710-10-07-RK	Header		4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	14	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin			Tin
3M (TC) 929710-10-26	Header	Tin-Lead	4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	52	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin
3M (TC) 929710-01-22	Header	Tin-Lead	2.79 mm		-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	44	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin	13.42 mm			0.11 in	0.528 in
3M (TC) 929710-01-04-RK	Header		2.79 mm		-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	8	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin	13.42 mm		Tin	0.11 in	0.528 in
3M (TC) 929710-06-18-RK	Header		18.03 mm	0.71 "	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	36	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin	28.65 mm	1.128 "	Tin
3M (TC) 929710-06-09	Header	Tin-Lead	18.03 mm	0.71 "	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	18	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin	28.65 mm	1.128 "
3M (TC) 929710-01-06-RK	Header		2.79 mm		-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	12	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin	13.42 mm		Tin	0.11 in	0.528 in
