929710-01-22

Active

3M (TC)

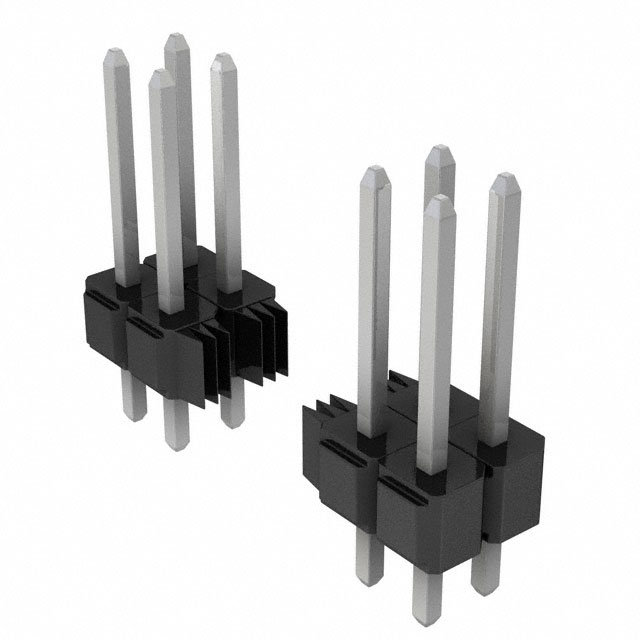

CONN HEADER VERT 44POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929710-01-22

Active

3M (TC)

CONN HEADER VERT 44POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929710-01-22

Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	13.42 mm
Overall Contact Length	0.528 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929710 Series

...

Part	Connector Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions Loaded	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Contact Type	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Insulation Material	Contact Material	Shrouding	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Termination	Overall Contact Length [x]	Overall Contact Length [x]	Mounting Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Length - Post [x]	Overall Contact Length
3M (TC) 929710-10-36	Header	Tin-Lead	4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	72	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin
3M (TC) 929710-10-20	Header	Tin-Lead	4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	40	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin
3M (TC) 929710-06-34	Header	Tin-Lead	18.03 mm	0.71 "	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	68	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin	28.65 mm	1.128 "
3M (TC) 929710-10-07-RK	Header		4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	14	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin			Tin
3M (TC) 929710-10-26	Header	Tin-Lead	4.45 mm	0.175 in	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	52	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.593 in	15.07 mm	Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin
3M (TC) 929710-01-22	Header	Tin-Lead	2.79 mm		-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	44	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin	13.42 mm			0.11 in	0.528 in
3M (TC) 929710-01-04-RK	Header		2.79 mm		-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	8	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin	13.42 mm		Tin	0.11 in	0.528 in
3M (TC) 929710-06-18-RK	Header		18.03 mm	0.71 "	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	36	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin	28.65 mm	1.128 "	Tin
3M (TC) 929710-06-09	Header	Tin-Lead	18.03 mm	0.71 "	-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	18	UL94 V-0	2.5 A	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	2.54 çm	100 çin	28.65 mm	1.128 "
3M (TC) 929710-01-06-RK	Header		2.79 mm		-40 °C	105 ░C	Push-Pull	All	Black	0.318 "	8.08 mm	Square	Male Pin	12	UL94 V-0	2.5 A	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	Unshrouded	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder			Through Hole	0.1 in	2.54 mm	5.08 µm	200 µin	13.42 mm		Tin	0.11 in	0.528 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.16
		10	$ 5.60
		100	$ 4.93
		500	$ 4.19
		1000	$ 3.57

Description

General part information

929710 Series

Connector Header Through Hole 44 position 0.100" (2.54mm)

Documents

Technical documentation and resources
