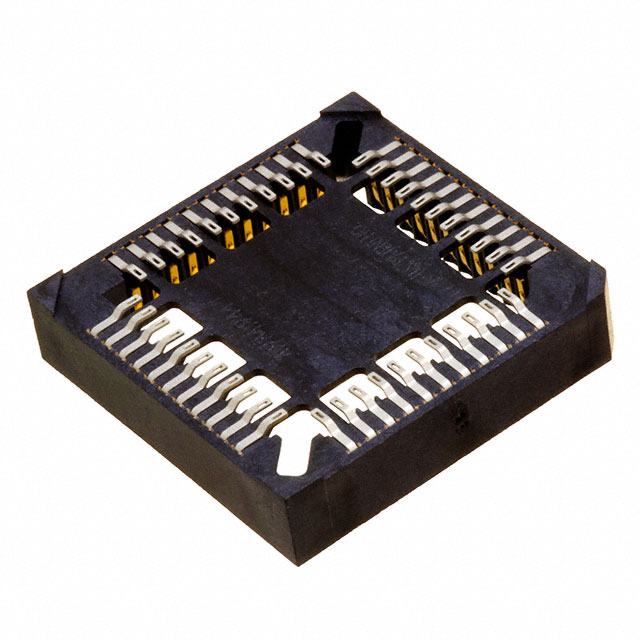

PLCC-044-F-N
ObsoleteSamtec Inc.
IC & COMPONENT SOCKETS 1.27MM SM DIP & CHIP SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
PLCC-044-F-N
ObsoleteSamtec Inc.
IC & COMPONENT SOCKETS 1.27MM SM DIP & CHIP SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLCC-044-F-N |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 10 mOhm |
| Features | Closed Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 44 |
| Number of Positions or Pins (Grid) [custom] | 4, 11 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | PLCC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PLCC-044 Series
IC & Component Sockets 1.27mm SM Dip & Chip Socket
