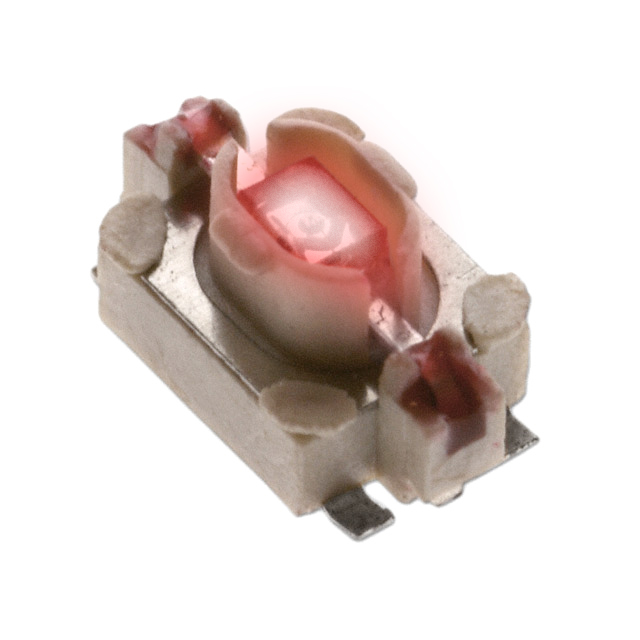

TL3210AF160XQ
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL3210AF160XQ
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3210AF160XQ |
|---|---|
| Actuator Height off PCB, Vertical | 3.12 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Illuminated |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 3.3 VDC, 1.95 VDC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 5.6 mm |
| Outline [y] | 3.4 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 2.85 | |
Description
General part information
TL3210 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
