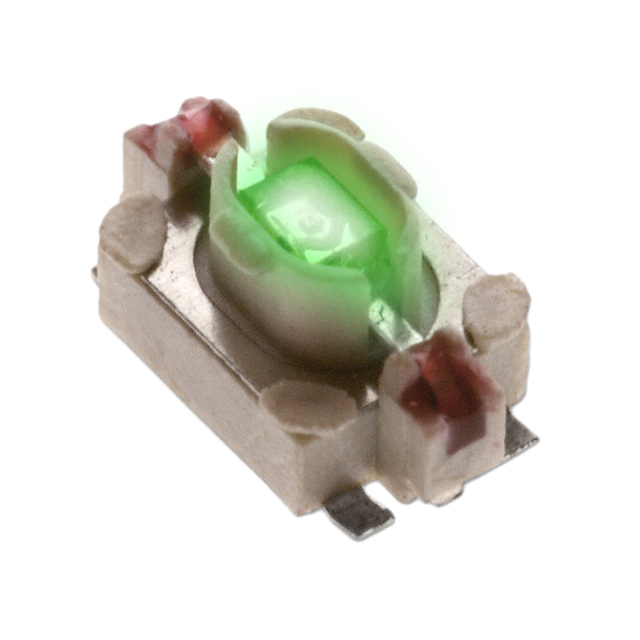

TL3210AF160GQ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3210AF160GQ

Actuator Height off PCB, Vertical	3.12 mm
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	5.6 mm
Outline [y]	3.4 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Mounting Type	Switch Function	Actuator Height off PCB, Vertical	Contact Rating @ Voltage	Switch Travel	Termination Style	Circuit	Outline [x]	Outline [y]	Illumination Type, Color	Actuator Type	Actuator Orientation	Illumination Voltage (Nominal)	Illumination
E-Switch TL3210AF160GQ	-20 C	70 °C	100000 Cycles	Surface Mount	Off-Mom	3.12 mm	0.05 A 12 VDC	0.2 mm	Gull Wing	SPST-NO	5.6 mm	3.4 mm	Green LED	Plunger for Cap	Top Actuated	2.1 VDC	Illuminated
E-Switch TL3210AF160WQ	-20 C	70 °C	100000 Cycles	Surface Mount	Off-Mom	3.12 mm	0.05 A 12 VDC	0.2 mm	Gull Wing	SPST-NO	5.6 mm	3.4 mm	LED White	Plunger for Cap	Top Actuated	3.6 VDC	Illuminated
E-Switch TL3210AF160XQ	-20 C	70 °C	100000 Cycles	Surface Mount	Off-Mom	3.12 mm	0.05 A 12 VDC	0.2 mm	Gull Wing	SPST-NO	5.6 mm	3.4 mm	Green/Red LED	Plunger for Cap	Top Actuated	1.95 VDC 3.3 VDC	Illuminated
E-Switch TL3210AF160BRQ	-20 C	70 °C	100000 Cycles	Surface Mount	Off-Mom	3.12 mm	0.05 A 12 VDC	0.2 mm	Gull Wing	SPST-NO	5.6 mm	3.4 mm	Blue/Red LED	Plunger for Cap	Top Actuated	1.95 VDC 3.3 VDC	Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 2.96

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
