122400RP-10

Active

Amphenol RF

TNC STRAIGHT SOLDER JACK FOR .08

Search across all available documentation for this part.

Active

Amphenol RF

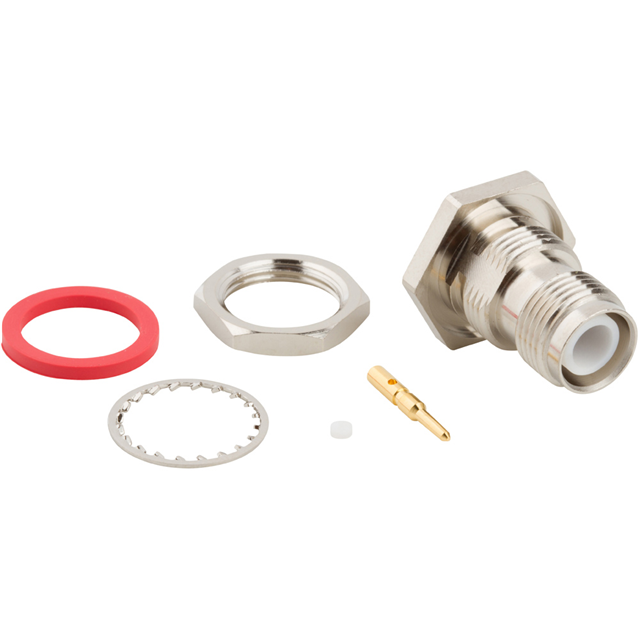

TNC STRAIGHT SOLDER JACK FOR .08

Technical Specifications

Parameters and characteristics for this part

Specification	122400RP-10

Body Finish	Nickel
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Connector Style	Number of Ports	Includes	Mounting Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Impedance	Housing Color	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Cable Group	Cable Group [Min]	Cable Group [Max]	Body Finish	Body Material	Connector Type	Shield Termination	Center Contact Plating	Dielectric Material
Amphenol RF 122400-10	TNC	1	Connector Contact Gasket Insulator Lockwasher Nut	Bulkhead - Front Side Nut	500 V	-65 ░C	165 °C	Crimp	50 Ohms	Silver	Phosphor Bronze	11 GHz	500	RG-405 Semi Rigid	0.085 in	0.086 in	Nickel	Brass	Female Socket Jack	Solder	Gold	Polytetrafluoroethylene (PTFE)
Amphenol RF 122400RP-10	RP-TNC	1			500 V	-65 ░C	165 °C	Solder	50 Ohms	Silver	Brass	11 GHz	500	RG-405 Semi Rigid	0.085 in	0.086 in	Nickel	Brass	Jack Male Pin	Crimp	Gold	Polytetrafluoroethylene (PTFE)
