122400-10

Active

Amphenol RF

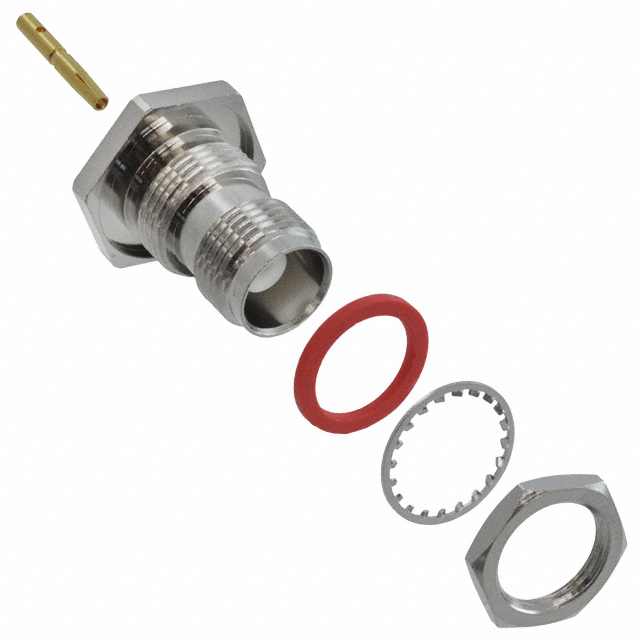

CONN TNC JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122400-10

Body Finish	Nickel
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Nut, Contact, Gasket, Lockwasher, Connector, Insulator
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Number of Ports	Includes	Mounting Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Impedance	Housing Color	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Cable Group	Cable Group [Min]	Cable Group [Max]	Body Finish	Body Material	Connector Type	Shield Termination	Center Contact Plating	Dielectric Material
Amphenol RF 122400-10	TNC	1	Connector Contact Gasket Insulator Lockwasher Nut	Bulkhead - Front Side Nut	500 V	-65 ░C	165 °C	Crimp	50 Ohms	Silver	Phosphor Bronze	11 GHz	500	RG-405 Semi Rigid	0.085 in	0.086 in	Nickel	Brass	Female Socket Jack	Solder	Gold	Polytetrafluoroethylene (PTFE)
Amphenol RF 122400RP-10	RP-TNC	1			500 V	-65 ░C	165 °C	Solder	50 Ohms	Silver	Brass	11 GHz	500	RG-405 Semi Rigid	0.085 in	0.086 in	Nickel	Brass	Jack Male Pin	Crimp	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.15

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
