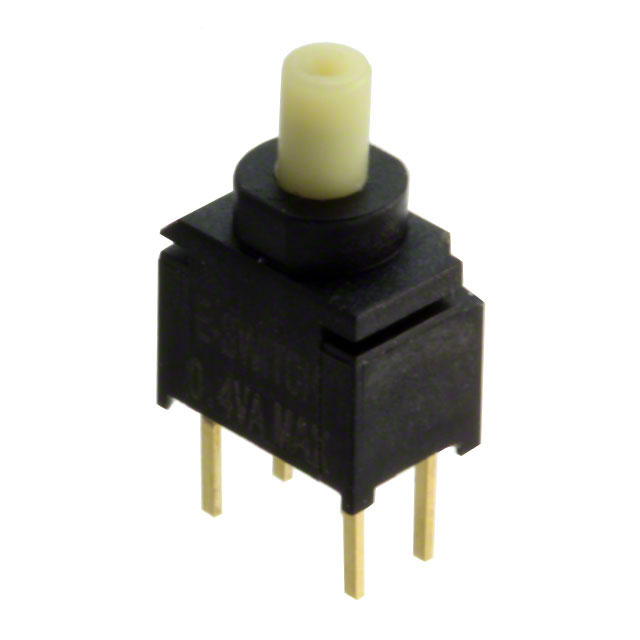

800USP8P1A1M2RE
ActiveE-Switch
SWITCH PUSH SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
800USP8P1A1M2RE
ActiveE-Switch
SWITCH PUSH SPDT 0.4VA 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800USP8P1A1M2RE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 6000 Cycles |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 40000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.38 | |
| 10 | $ 2.13 | |||
| 25 | $ 2.02 | |||
| 65 | $ 1.92 | |||
| 130 | $ 1.83 | |||
| 260 | $ 1.75 | |||
| 520 | $ 1.75 | |||
Description
General part information
800USP8 Series
Pushbutton Switch SPDT Standard Through Hole
Documents
Technical documentation and resources
No documents available
