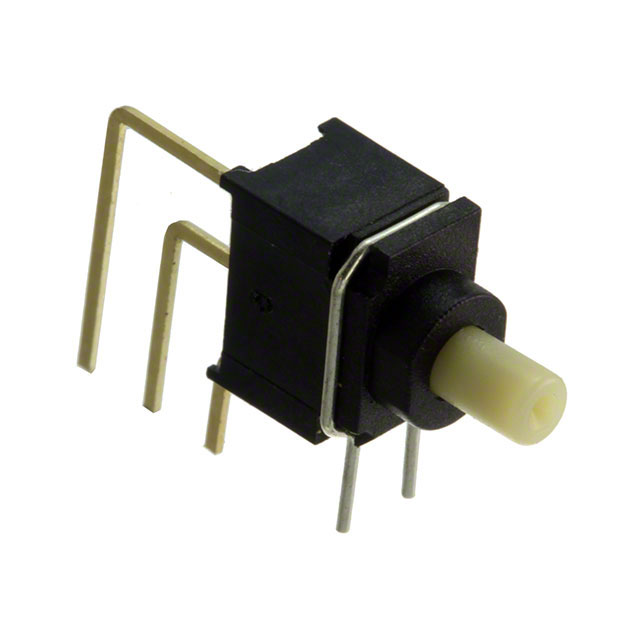

800USP8P1A1M7RE

Active

E-Switch

SWITCH PUSH SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	800USP8P1A1M7RE

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	6000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	40000 Cycles
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Circuit	Mounting Type	Mechanical Life	Electrical Life	Termination Style	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Marking	Actuator Type	Ingress Protection	Features
E-Switch 800USP8P1A1M7RE	SPDT	Right Angle Through Hole Vertical	40000 Cycles	6000 Cycles	PC Pin	20 V	On-Mom	20 V	Standard	-30 ░C	85 °C	0.4 VA	No Marking	Plunger for Cap	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals
E-Switch 800USP8P1A1M2RE	SPDT	Through Hole	40000 Cycles	6000 Cycles	PC Pin	20 V	On-Mom	20 V	Standard	-30 ░C	85 °C	0.4 VA	No Marking	Plunger for Cap	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	504	$ 2.58

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
