5282-4PG-315
ActiveConxall/Switchcraft

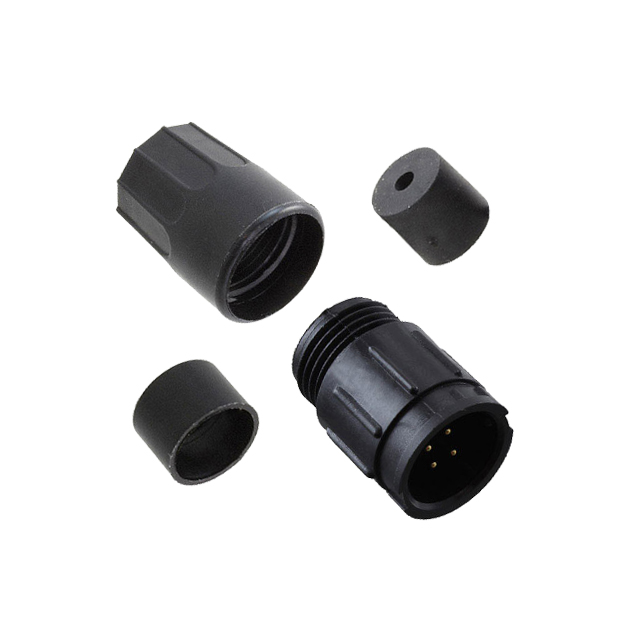

CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5282-4PG-315
ActiveConxall/Switchcraft
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5282-4PG-315 | 5282-4PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 - 0.3 in |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening | - | 5.33 - 7.62 mm |
| Cable Opening | - | 0.23 - 0.32 in |
| Cable Opening | - | 8.13 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
5282-4PG Series
CONN RCPT MALE 4P GOLD SLDR CUP
| Part | Primary Material | Color | Mounting Type | Fastening Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Features | Orientation | Ingress Protection | Contact Finish - Mating | Connector Type | Backshell Material, Plating | Shielding | Contact Material | Current Rating (Amps) | Number of Positions | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Max] [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5282-4PG-524 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | 0.24 in | 6.86 mm | 6.1 mm | 0.27 in | Backshell, Cable Clamp | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | |||||||
Conxall/Switchcraft 5282-4PG-321 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | 0.21 in | 5.84 mm | 5.33 mm | 0.23 in | Backshell | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | |||||||
Conxall/Switchcraft 5282-4PG-521 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | 0.21 in | 5.84 mm | 5.33 mm | 0.23 in | Backshell, Cable Clamp | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | |||||||
Conxall/Switchcraft 5282-4PG-330 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | 0.3 in | 7.62 mm | 0.32 in | Backshell | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | 8.13 mm | |||||||
Conxall/Switchcraft 5282-4PG-515 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | Backshell, Cable Clamp | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 5282-4PG-530 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | 0.3 in | 7.62 mm | 0.32 in | Backshell, Cable Clamp | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | 8.13 mm | |||||||
Conxall/Switchcraft 5282-4PG-3DC | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | Backshell | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | |||||||||||
Conxall/Switchcraft 5282-4PG-315 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | Backshell | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 5282-4PG-528 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | 0.28 in | 7.37 mm | 7.11 mm | 0.29 in | Backshell, Cable Clamp | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | |||||||
Conxall/Switchcraft 5282-4PG-318 | Plastic | Black | Free Hanging (In-Line) | Bayonet Lock | Backshell | Keyed | Weathertight | Gold | Male Pins, Receptacle | Nylon, Polyamide (PA) | Unshielded | Brass | 5.6 A | 4 | 600 V | -40 °C | 115 °C | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
