5282-4PG-515

Active

Conxall/Switchcraft

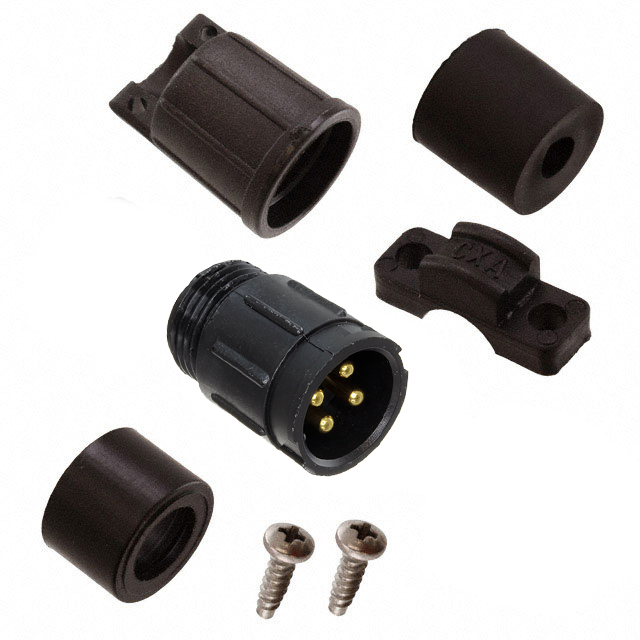

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5282-4PG-515

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.88
		10	$ 10.95
		25	$ 10.26
		50	$ 9.77
		100	$ 9.31
		300	$ 8.61
		500	$ 8.31
		1000	$ 7.91

Description

General part information

5282-4PG Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5282-4PG-515	5282-4PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

5282-4PG Series

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Primary Material	Color	Mounting Type	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Orientation	Ingress Protection	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Shielding	Contact Material	Current Rating (Amps)	Number of Positions	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5282-4PG-524	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.24 in	6.86 mm	6.1 mm	0.27 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-321	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.21 in	5.84 mm	5.33 mm	0.23 in	Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-521	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.21 in	5.84 mm	5.33 mm	0.23 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-330	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.3 in		7.62 mm	0.32 in	Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C	8.13 mm
Conxall/Switchcraft 5282-4PG-515	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C		0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5282-4PG-530	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.3 in		7.62 mm	0.32 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C	8.13 mm
Conxall/Switchcraft 5282-4PG-3DC	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-315	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C		0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5282-4PG-528	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.28 in	7.37 mm	7.11 mm	0.29 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-318	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C				4.57 mm	0.18 in	0.2 in	5.08 mm
