5282-4PG-3DC

Active

Conxall/Switchcraft

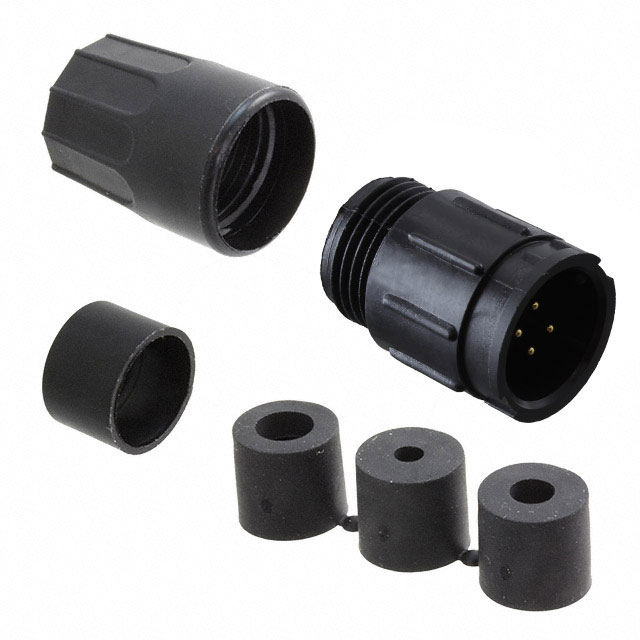

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCable Assemblies/Connector Catalog Datasheet

5282-4PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsCable Assemblies/Connector Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.09
		10	$ 11.60
		100	$ 10.11
		1000	$ 7.91

Description

General part information

5282-4PG Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Cable Assemblies/Connector Catalog

Datasheet

Specification	5282-4PG-3DC	5282-4PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

Part

Primary Material

Color

Mounting Type

Fastening Type

Cable Opening [Min] [diameter]

Cable Opening [Max] [diameter]

Cable Opening [Min] [diameter]

Cable Opening [Max] [diameter]

Features

Orientation

Ingress Protection

Contact Finish - Mating

Connector Type

Backshell Material, Plating

Shielding

Contact Material

Current Rating (Amps)

Number of Positions

Voltage Rating

Operating Temperature [Min]

Operating Temperature [Max]

Cable Opening [Max] [diameter]

Cable Opening [custom]

Cable Opening [Min] [custom]

Cable Opening [Max] [custom]

Conxall/Switchcraft

5282-4PG-524

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

0.24 in

6.86 mm

6.1 mm

0.27 in

Backshell, Cable Clamp

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

Conxall/Switchcraft

5282-4PG-321

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

0.21 in

5.84 mm

5.33 mm

0.23 in

Backshell

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

Conxall/Switchcraft

5282-4PG-521

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

0.21 in

5.84 mm

5.33 mm

0.23 in

Backshell, Cable Clamp

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

Conxall/Switchcraft

5282-4PG-330

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

0.3 in

7.62 mm

0.32 in

Backshell

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

8.13 mm

Conxall/Switchcraft

5282-4PG-515

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

Backshell, Cable Clamp

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

0.15 in, 0.17 in

3.81 mm, 4.32 mm

Conxall/Switchcraft

5282-4PG-530

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

0.3 in

7.62 mm

0.32 in

Backshell, Cable Clamp

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

8.13 mm

Conxall/Switchcraft

5282-4PG-3DC

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

Backshell

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

Conxall/Switchcraft

5282-4PG-315

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

Backshell

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

0.15 in, 0.17 in

3.81 mm, 4.32 mm

Conxall/Switchcraft

5282-4PG-528

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

0.28 in

7.37 mm

7.11 mm

0.29 in

Backshell, Cable Clamp

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

Conxall/Switchcraft

5282-4PG-318

Plastic

Black

Free Hanging (In-Line)

Bayonet Lock

Backshell

Keyed

Weathertight

Gold

Male Pins, Receptacle

Nylon, Polyamide (PA)

Unshielded

Brass

5.6 A

600 V

-40 °C

115 °C

4.57 mm

0.18 in

0.2 in

5.08 mm

Part	Primary Material	Color	Mounting Type	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Orientation	Ingress Protection	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Shielding	Contact Material	Current Rating (Amps)	Number of Positions	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5282-4PG-524	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.24 in	6.86 mm	6.1 mm	0.27 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-321	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.21 in	5.84 mm	5.33 mm	0.23 in	Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-521	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.21 in	5.84 mm	5.33 mm	0.23 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-330	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.3 in		7.62 mm	0.32 in	Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C	8.13 mm
Conxall/Switchcraft 5282-4PG-515	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C		0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5282-4PG-530	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.3 in		7.62 mm	0.32 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C	8.13 mm
Conxall/Switchcraft 5282-4PG-3DC	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-315	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C		0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5282-4PG-528	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock	0.28 in	7.37 mm	7.11 mm	0.29 in	Backshell, Cable Clamp	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C
Conxall/Switchcraft 5282-4PG-318	Plastic	Black	Free Hanging (In-Line)	Bayonet Lock					Backshell	Keyed	Weathertight	Gold	Male Pins, Receptacle	Nylon, Polyamide (PA)	Unshielded	Brass	5.6 A	4	600 V	-40 °C	115 °C				4.57 mm	0.18 in	0.2 in	5.08 mm
