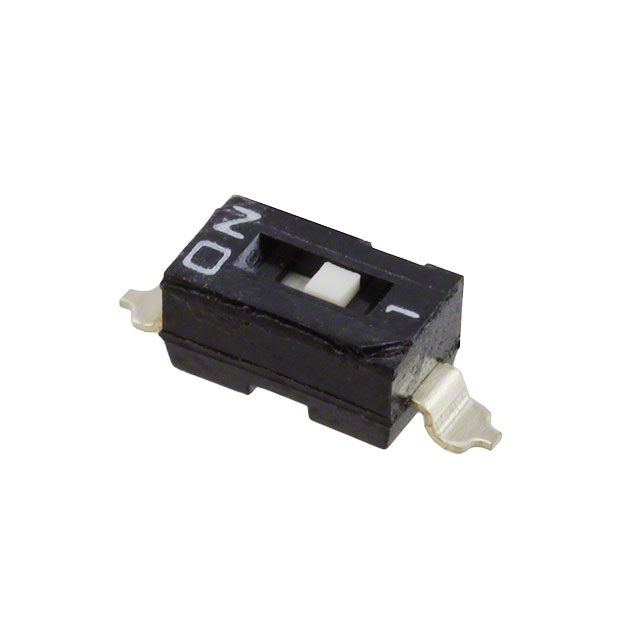

KAE01SGGT
ActiveE-Switch
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
KAE01SGGT
ActiveE-Switch
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KAE01SGGT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board | 3.75 mm |
| Height Above Board | 0.148 in |
| Length [x] | 0.141 " |
| Length [x] | 3.58 mm |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.27 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.15 | |||
| 130 | $ 0.99 | |||
| 260 | $ 0.90 | |||
| 520 | $ 0.84 | |||
| 1040 | $ 0.78 | |||
| 2600 | $ 0.71 | |||
| 5070 | $ 0.66 | |||
Description
General part information
KAE01 Series
Dip Switch SPST 1 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Documents
Technical documentation and resources
No documents available
