KAE01LAGT

Active

E-Switch

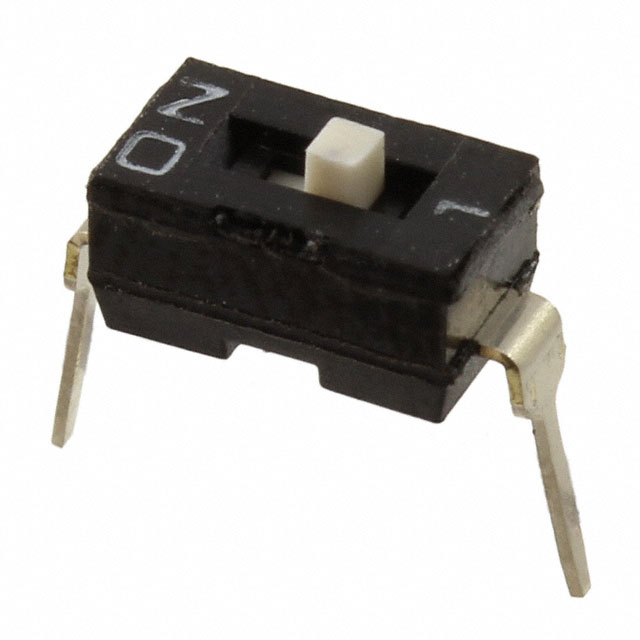

DIP / SIP SWITCH, 1 CIRCUITS, SLIDE, THROUGH HOLE, SPST, 24 V, 25 MA

Search across all available documentation for this part.

Active

E-Switch

DIP / SIP SWITCH, 1 CIRCUITS, SLIDE, THROUGH HOLE, SPST, 24 V, 25 MA

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Electrical Life	Voltage Rating	Contact Finish	Length [x]	Length [x]	Mechanical Life	Height Above Board	Height Above Board	Number of Positions	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Circuit	Actuator Type	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features
E-Switch KAE01LAGT	25 mA	2000 Steps	24 VDC	Gold	0.141 "	3.58 mm	2000 Cycles	0.169 in	4.3 mm	1	Raised	0.1 in	Full	2.54 mm	Through Hole	SPST	Slide (Standard)	Copper	PC Pin	85 °C	-20 C
E-Switch KAE01SGGT	25 mA	2000 Steps	24 VDC	Gold	0.141 "	3.58 mm	2000 Cycles	0.148 in	3.75 mm	1	Flush Recessed	0.1 in	Full	2.54 mm	Surface Mount	SPST	Slide (Standard)	Copper	Gull Wing	85 °C	-20 C
E-Switch KAE01TGGR	25 mA	2000 Steps	24 VDC	Gold	0.141 "	3.58 mm	2000 Cycles	0.12 in	3.05 mm	1	Flush Recessed	0.1 in	Full	2.54 mm	Surface Mount	SPST	Slide (Standard)	Copper	Gull Wing	85 °C	-20 C	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 1 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
