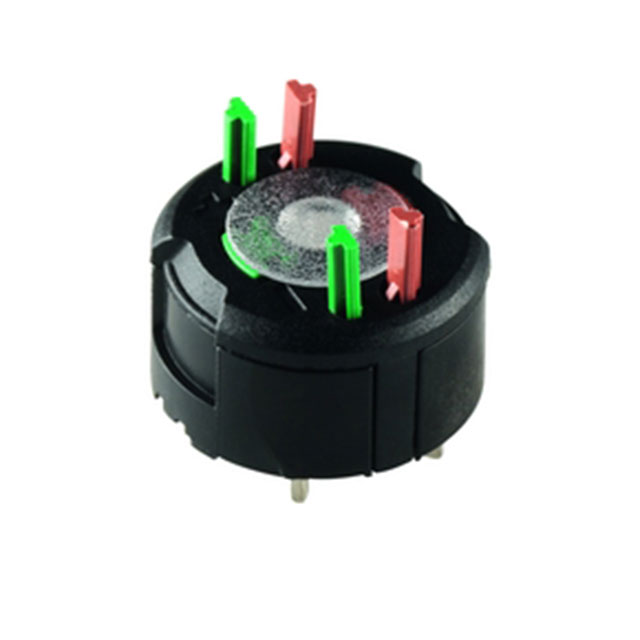

1.20.126.203/9000

Active

RAFI USA

CONTACT BLOCK SPST 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST 3A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO + SPST-NC 3A @ 120VAC

Technical documentation and resources

Specification	1.20.126.203/9000	1.20126 Series

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS	Rafix 22 FS
Circuit	SPST-NO + SPST-NC	DPST-NO, SPST-NO, SPST-NC, DPST-NC, SPST-NO + SPST-NC
Contact Rating @ Voltage	3 A, 120 VAC	0.1 - 120 VAC/DC
Requires	Switch Body	Switch Body
Termination Style	PC Pin	Quick Connect - 0.110" (2.8mm), PC Pin

Part	Requires	Circuit	Termination Style	Contact Rating @ Voltage	(Select First, Then Apply Filters) Compatible Series
RAFI USA 1.20.126.105/0000	Switch Body	DPST-NO	Quick Connect - 0.110" (2.8mm)	0.1 A, 35 VAC/DC	Rafix 22 FS
RAFI USA 1.20.126.302/9000	Switch Body	SPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.005/9000	Switch Body	DPST-NO	PC Pin	0.1 A, 35 VAC/DC	Rafix 22 FS
RAFI USA 1.20.126.101/9000	Switch Body	SPST-NC	Quick Connect - 0.110" (2.8mm)	0.1 A, 35 VAC/DC	Rafix 22 FS
RAFI USA 1.20.126.701/0000	Switch Body	SPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.604/0000	Switch Body	DPST-NC	PC Pin	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.705/9000	Switch Body	DPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.601/0000	Switch Body	SPST-NC	PC Pin	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.203/9000	Switch Body	SPST-NO + SPST-NC	PC Pin	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.403/0000	Switch Body	SPST-NO + SPST-NC	PC Pin	0.1 A, 35 VAC/DC	Rafix 22 FS
