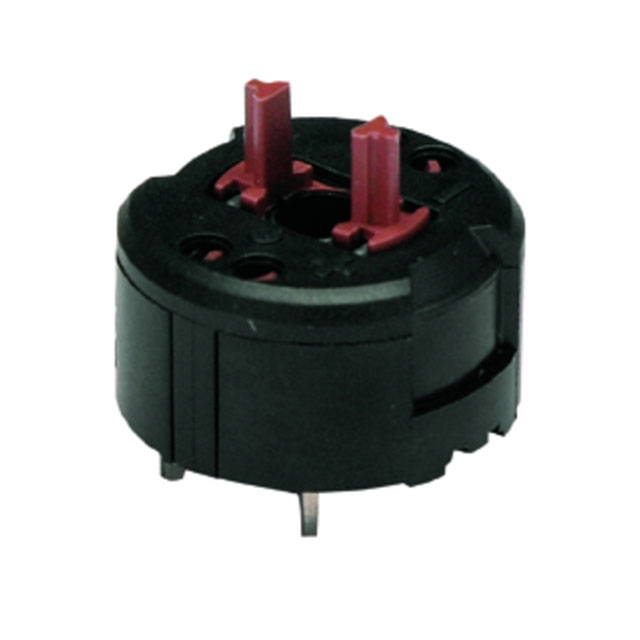

1.20.126.601/0000

Active

RAFI USA

CONTACT BLOCK SPST-NC 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST-NC 3A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NC 3A @ 120VAC

Technical documentation and resources

Specification	1.20.126.601/0000	1.20126 Series

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS	Rafix 22 FS
Circuit	SPST-NC	DPST-NO, SPST-NO, SPST-NC, DPST-NC, SPST-NO + SPST-NC
Contact Rating @ Voltage	3 A, 120 VAC	0.1 - 120 VAC/DC
Requires	Switch Body	Switch Body
Termination Style	PC Pin	Quick Connect - 0.110" (2.8mm), PC Pin

Part	Requires	Circuit	Termination Style	Contact Rating @ Voltage	(Select First, Then Apply Filters) Compatible Series
RAFI USA 1.20.126.105/0000	Switch Body	DPST-NO	Quick Connect - 0.110" (2.8mm)	0.1 A, 35 VAC/DC	Rafix 22 FS
RAFI USA 1.20.126.302/9000	Switch Body	SPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.005/9000	Switch Body	DPST-NO	PC Pin	0.1 A, 35 VAC/DC	Rafix 22 FS
RAFI USA 1.20.126.101/9000	Switch Body	SPST-NC	Quick Connect - 0.110" (2.8mm)	0.1 A, 35 VAC/DC	Rafix 22 FS
RAFI USA 1.20.126.701/0000	Switch Body	SPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.604/0000	Switch Body	DPST-NC	PC Pin	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.705/9000	Switch Body	DPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.601/0000	Switch Body	SPST-NC	PC Pin	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.203/9000	Switch Body	SPST-NO + SPST-NC	PC Pin	3 A, 120 VAC	Rafix 22 FS
RAFI USA 1.20.126.403/0000	Switch Body	SPST-NO + SPST-NC	PC Pin	0.1 A, 35 VAC/DC	Rafix 22 FS
