Z80-058

Active

Harwin Inc.

CRIMP TOOL LOCATOR, HARWIN M22520/2-01 HAND CRIMP TOOL, M80-71X, M80-055 DATAMATE J-TEK SOCKETS

Search across all available documentation for this part.

Active

Harwin Inc.

CRIMP TOOL LOCATOR, HARWIN M22520/2-01 HAND CRIMP TOOL, M80-71X, M80-055 DATAMATE J-TEK SOCKETS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

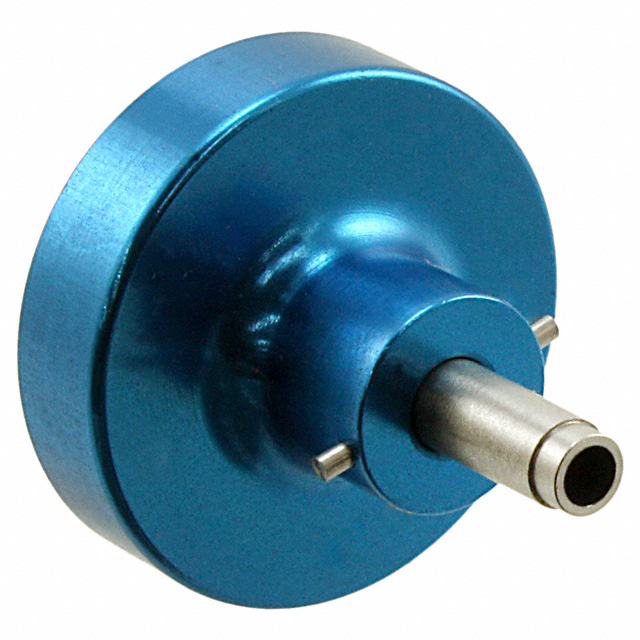

Tool Positioner For Rectangular Contacts, 18-20 AWG

Technical documentation and resources

Specification	Z80-058	Z80 Series

Compatible Tools	M22520/2-01	M22520/2-01, Z80-255
For Use With/Related Products	Rectangular Contacts, 18-20 AWG	Varies by Positioner, Datamate Trio-Tek, Rectangular Connectors, Coaxial, RF Connectors, Rectangular Contacts, 22-28 AWG, Rectangular Contacts, 18-20 AWG, Rectangular Contacts
Ratcheting	-	Ratchet
Tool Type	Positioner	Hand Crimper, Extraction Tool, Installation Tool, Positioner, Die Set, Insertion/Extraction Tool
Tool Type Feature	-	Without Positioner
Wire Entry Location	-	Side Entry
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	22 AWG

Part	For Use With/Related Products	Tool Type	Wire Entry Location	Tool Type Feature	Ratcheting	Compatible Tools	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
Harwin Inc. Z80-292	Varies by Positioner	Hand Crimper	Side Entry	Without Positioner	Ratchet
Harwin Inc. Z80-294	Varies by Positioner	Hand Crimper	Side Entry	Without Positioner	Ratchet
Harwin Inc. Z80-258	Datamate Trio-Tek	Extraction Tool
Harwin Inc. Z80-298	Rectangular Connectors	Installation Tool
Harwin Inc. Z80-290	Coaxial, RF Connectors	Extraction Tool
Harwin Inc. Z80-193	Rectangular Contacts, 22-28 AWG	Positioner				M22520/2-01
Harwin Inc. Z80-058	Rectangular Contacts, 18-20 AWG	Positioner				M22520/2-01
Harwin Inc. Z80-244	Rectangular Contacts, 22-28 AWG	Die Set				Z80-255
Harwin Inc. Z80-255	Rectangular Contacts	Hand Crimper	Side Entry		Ratchet		28 AWG	22 AWG
Harwin Inc. Z80-280		Insertion/Extraction Tool
