General part information
Installation Tool Rectangular Connectors
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | Z80-298 | Z80 Series |
|---|---|---|
| Compatible Tools | - | M22520/2-01, Z80-255 |
| For Use With/Related Products | Rectangular Connectors | Varies by Positioner, Datamate Trio-Tek, Rectangular Connectors, Coaxial, RF Connectors, Rectangular Contacts, 22-28 AWG, Rectangular Contacts, 18-20 AWG, Rectangular Contacts |
| Ratcheting | - | Ratchet |
| Tool Type | Installation Tool | Hand Crimper, Extraction Tool, Installation Tool, Positioner, Die Set, Insertion/Extraction Tool |
| Tool Type Feature | - | Without Positioner |
| Wire Entry Location | - | Side Entry |
| Wire Gauge or Range - AWG | - | 28 AWG |
| Wire Gauge or Range - AWG | - | 22 AWG |
HAND CRIMP TOOL ROHS COMPLIANT: NA
| Part | For Use With/Related Products | Tool Type | Wire Entry Location | Tool Type Feature | Ratcheting | Compatible Tools | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] |
|---|---|---|---|---|---|---|---|---|
Harwin Inc. Z80-292 | Varies by Positioner | Hand Crimper | Side Entry | Without Positioner | Ratchet | |||
Harwin Inc. Z80-294 | Varies by Positioner | Hand Crimper | Side Entry | Without Positioner | Ratchet | |||
Harwin Inc. Z80-258 | Datamate Trio-Tek | Extraction Tool | ||||||

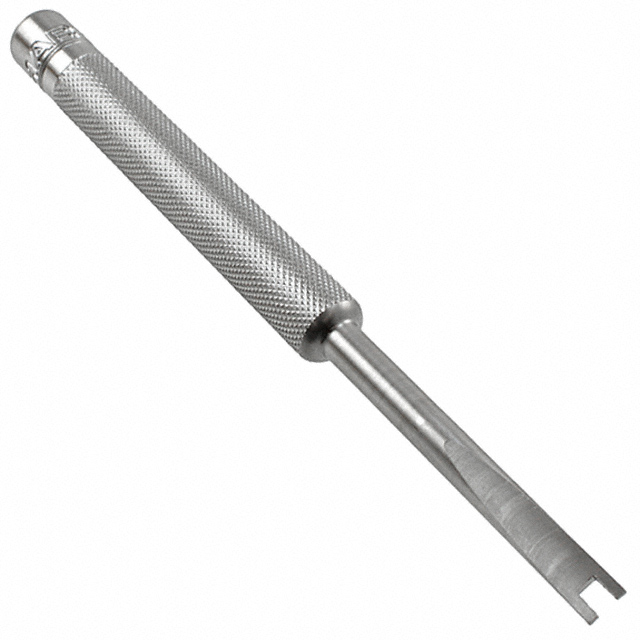

Harwin Inc. Z80-298 | Rectangular Connectors | Installation Tool | ||||||
Harwin Inc. Z80-290 | Coaxial, RF Connectors | Extraction Tool | ||||||
Harwin Inc. Z80-193 | Rectangular Contacts, 22-28 AWG | Positioner | M22520/2-01 | |||||
Harwin Inc. Z80-058 | Rectangular Contacts, 18-20 AWG | Positioner | M22520/2-01 | |||||
Harwin Inc. Z80-244 | Rectangular Contacts, 22-28 AWG | Die Set | Z80-255 | |||||
Harwin Inc. Z80-255 | Rectangular Contacts | Hand Crimper | Side Entry | Ratchet | 28 AWG | 22 AWG | ||
Harwin Inc. Z80-280 | Insertion/Extraction Tool |
