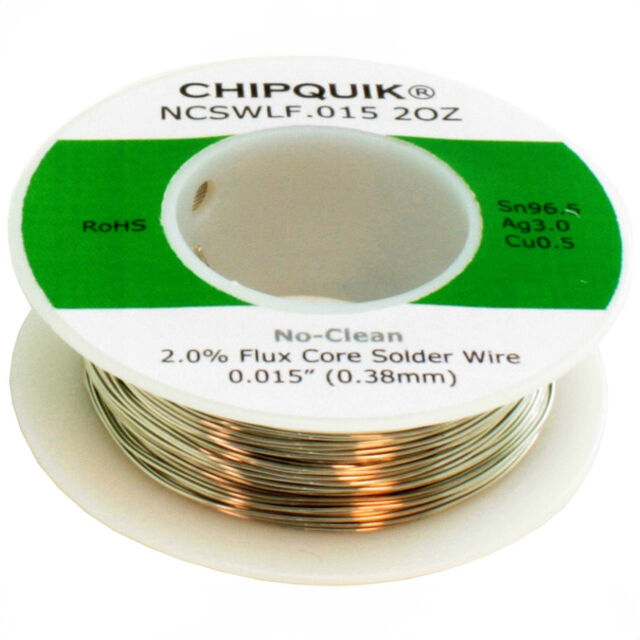

NCSWLF.015 2OZ

Active

Chip Quik Inc.

LF SOLDER WIRE 96.5/3/0.5 TIN/SI

Search across all available documentation for this part.

Active

Chip Quik Inc.

LF SOLDER WIRE 96.5/3/0.5 TIN/SI

Technical Specifications

Parameters and characteristics for this part

Part	Diameter [diameter]	Diameter [diameter]	Flux Type	Composition	Melting Point [Min] [custom]	Melting Point [Max] [custom]	Melting Point [Min] [custom]	Melting Point [Max] [custom]	Type	Form	Form	Form
Chip Quik Inc. NCSWLF.015 4OZ	0.015 in	0.38 mm	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	423 °F	220 °C	217 °C	428 °F	Wire Solder	Spool	4 oz	113.4 g
Chip Quik Inc. NCSWLF.015 8OZ	0.015 in	0.38 mm	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	423 °F	220 °C	217 °C	428 °F	Wire Solder	Spool	8 oz	226.8 g
Chip Quik Inc. NCSWLF.015 2OZ	0.015 in	0.38 mm	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	423 °F	220 °C	217 °C	428 °F	Wire Solder	Spool	2 oz	56.7 g
Chip Quik Inc. NCSWLF.015 1LB	0.015 in	0.38 mm	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	423 °F	220 °C	217 °C	428 °F	Wire Solder	Spool	1 lb	16 oz
Chip Quik Inc. NCSWLF.015 0.2OZ	0.015 in	0.38 mm	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	423 °F	220 °C	217 °C	428 °F	Wire Solder	Tube		0.2 oz 5.66 g
Chip Quik Inc. NCSWLF.015 1OZ	0.015 in	0.38 mm	No-Clean	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	423 °F	220 °C	217 °C	428 °F	Wire Solder	Spool	1 oz	28.35 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

No-Clean Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) Spool, 2 oz (56.70g)
