SEAM-40-06.5-S-08-1-A-K-TR

Active

Samtec Inc.

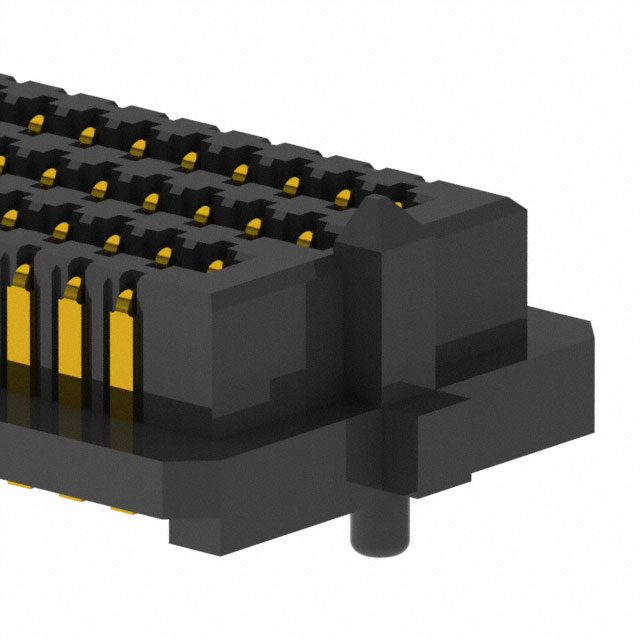

CONN OPEN PIN FIELD ARRAY HDR 320 POS 1.27MM SOLDER ST TOP ENTRY SMD SEARAY™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM-40-06.5-S-08-1-A-K-TR

Active

Samtec Inc.

CONN OPEN PIN FIELD ARRAY HDR 320 POS 1.27MM SOLDER ST TOP ENTRY SMD SEARAY™ T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM-40-06.5-S-08-1-A-K-TR

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	0.36 in
Height Above Board	9.14 mm
Mated Stacking Heights	11.5 mm, 12.5 mm, 13 mm
Mounting Type	Surface Mount
Number of Positions	320
Number of Rows	8
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAM-40 Series

...

Part	Contact Finish	Number of Rows	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board	Mounting Type	Features	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Samtec Inc. SEAM-40-02.0-L-08-1-A-K-TR	Gold	8	High Density Array Male	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	0.181 in	4.6 mm	Surface Mount	Board Guide Pick and Place	320	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-02.0-L-04-1-A-GP-K-TR	Gold		High Density Array Male	7 mm 8 mm 8.5 mm 9.5 mm	0.181 in	4.6 mm	Surface Mount	Board Guide Mating Flange Pick and Place	160	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-01-S-08-2-RA-K-TR	Gold	8	High Density Array Male		0.411 in	10.45 mm	Surface Mount Right Angle	Board Guide Pick and Place	320	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SEAM-40-06.5-S-08-1-A-K-TR	Gold	8	High Density Array Male	11.5 mm 12.5 mm 13 mm	0.36 in	9.14 mm	Surface Mount	Board Guide Pick and Place	320	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SEAM-40-03.5-S-06-1-A-K-TR	Gold	6	High Density Array Male	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm			Surface Mount	Board Guide Pick and Place	240	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.24 "	6.1 mm
Samtec Inc. SEAM-40-01-L-06-1-RA-GP-K-TR	Gold	6	High Density Array Male		0.311 in	7.9 mm	Surface Mount Right Angle	Board Guide Mating Flange Pick and Place	240	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-03.5-L-08-2-A-K-TR	Gold	8	High Density Array Male	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm			Surface Mount	Board Guide Pick and Place	320	0.05 in	1.27 mm	10 Áin	0.25 Ám	0.24 "	6.1 mm
Samtec Inc. SEAM-40-01-L-06-2-RA-GP-TR	Gold	6	High Density Array Male		0.311 in	7.9 mm	Surface Mount Right Angle	Board Guide Mating Flange	240	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-01-S-04-1-RA-GP-TR	Gold		High Density Array Male		0.211 in	5.35 mm	Surface Mount Right Angle	Board Guide Mating Flange	160	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SEAM-40-01-L-08-2-RA-GP-TR	Gold	8	High Density Array Male		0.411 in	10.45 mm	Surface Mount Right Angle	Board Guide Mating Flange	320	0.05 in	1.27 mm	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	150	$ 28.80

Description

General part information

SEAM-40 Series

320 Position Connector High Density Array, Male Surface Mount Gold
