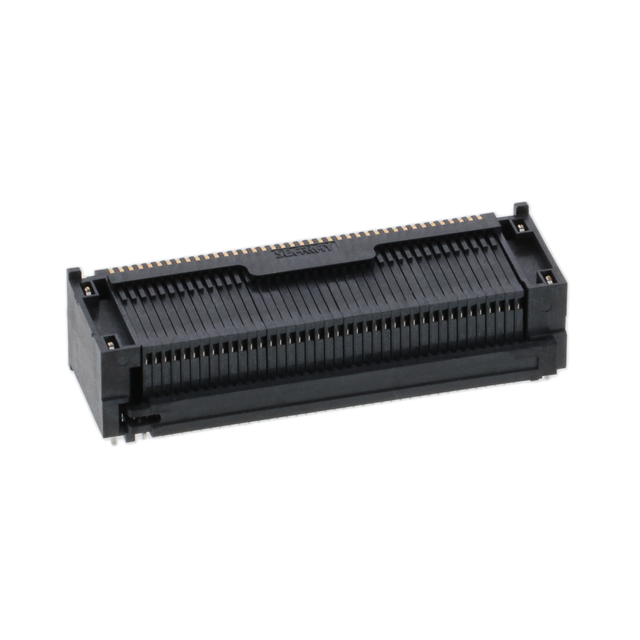

SEAM-40-02.0-L-04-1-A-GP-K-TR

Active

Samtec Inc.

CONN HD ARRAY PLUG 160P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEAM-10-02.0-L-05-1-A-K-TR Datasheet 02 SEAF Series Other Related Documents 03 +2

SEAM-40-02.0-L-04-1-A-GP-K-TR

Active

Samtec Inc.

CONN HD ARRAY PLUG 160P SMD GOLD

Deep-Dive with AI

DocumentsSEAM-10-02.0-L-05-1-A-K-TR Datasheet 02 SEAF Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM-40-02.0-L-04-1-A-GP-K-TR

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Mating Flange, Pick and Place, Board Guide
Height Above Board	0.181 in
Height Above Board	4.6 mm
Mated Stacking Heights	9.5 mm, 7 mm, 8 mm, 8.5 mm
Mounting Type	Surface Mount
Number of Positions	160
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAM-40 Series

...

Part	Contact Finish	Number of Rows	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board	Mounting Type	Features	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Samtec Inc. SEAM-40-02.0-L-08-1-A-K-TR	Gold	8	High Density Array Male	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	0.181 in	4.6 mm	Surface Mount	Board Guide Pick and Place	320	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-02.0-L-04-1-A-GP-K-TR	Gold		High Density Array Male	7 mm 8 mm 8.5 mm 9.5 mm	0.181 in	4.6 mm	Surface Mount	Board Guide Mating Flange Pick and Place	160	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-01-S-08-2-RA-K-TR	Gold	8	High Density Array Male		0.411 in	10.45 mm	Surface Mount Right Angle	Board Guide Pick and Place	320	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SEAM-40-06.5-S-08-1-A-K-TR	Gold	8	High Density Array Male	11.5 mm 12.5 mm 13 mm	0.36 in	9.14 mm	Surface Mount	Board Guide Pick and Place	320	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SEAM-40-03.5-S-06-1-A-K-TR	Gold	6	High Density Array Male	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm			Surface Mount	Board Guide Pick and Place	240	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.24 "	6.1 mm
Samtec Inc. SEAM-40-01-L-06-1-RA-GP-K-TR	Gold	6	High Density Array Male		0.311 in	7.9 mm	Surface Mount Right Angle	Board Guide Mating Flange Pick and Place	240	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-03.5-L-08-2-A-K-TR	Gold	8	High Density Array Male	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm			Surface Mount	Board Guide Pick and Place	320	0.05 in	1.27 mm	10 Áin	0.25 Ám	0.24 "	6.1 mm
Samtec Inc. SEAM-40-01-L-06-2-RA-GP-TR	Gold	6	High Density Array Male		0.311 in	7.9 mm	Surface Mount Right Angle	Board Guide Mating Flange	240	0.05 in	1.27 mm	10 Áin	0.25 Ám
Samtec Inc. SEAM-40-01-S-04-1-RA-GP-TR	Gold		High Density Array Male		0.211 in	5.35 mm	Surface Mount Right Angle	Board Guide Mating Flange	160	0.05 in	1.27 mm	30 Áin	0.76 Ám
Samtec Inc. SEAM-40-01-L-08-2-RA-GP-TR	Gold	8	High Density Array Male		0.411 in	10.45 mm	Surface Mount Right Angle	Board Guide Mating Flange	320	0.05 in	1.27 mm	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 17.16
		10	$ 16.41
		25	$ 15.79
		50	$ 14.64
	Tape & Reel (TR)	125	$ 12.62
		250	$ 11.51

SEAM-40-02.0-L-04-1-A-GP-K-TR

Deep-Dive with AI

SEAM-40-02.0-L-04-1-A-GP-K-TR

Deep-Dive with AI

Technical Specifications

SEAM-40 Series

Pricing

Description

SEAM-40 Series

Documents

SEAM-10-02.0-L-05-1-A-K-TR Datasheet 02

SEAF Series Other Related Documents 03

Board to Board & Mezzanine Connectors .050 PITCH TERMINAL ARRAY ASSEMBLY MALE

Datasheet

SEAM-40 Series
