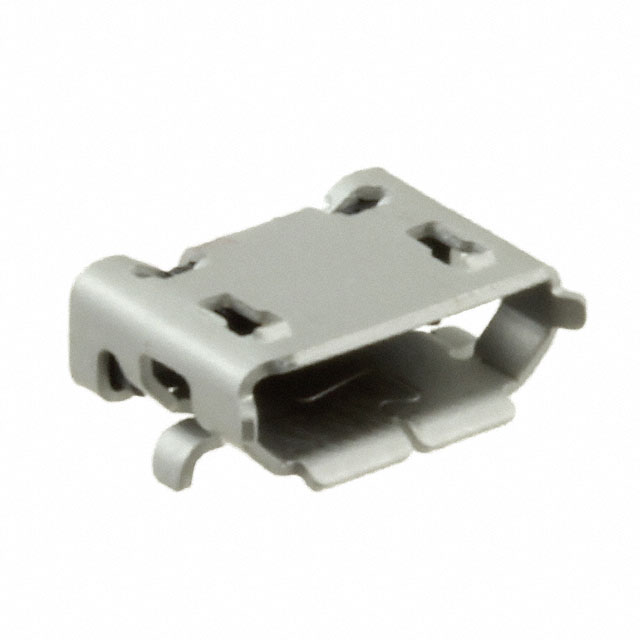

ZX62D1-B-5PA(30)
ActiveHirose Electric Co Ltd
CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
ZX62D1-B-5PA(30)
ActiveHirose Electric Co Ltd
CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZX62D1-B-5PA(30) | ZX62 Series |
|---|---|---|
| Connector Type | USB - micro B | USB - micro AB, USB - micro B |
| Contact Finish | Gold | Gold |
| Current Rating (Amps) | 1.8 A | 1 - 100 A |
| Features | Pick and Place Cap, Solder Retention | Pick and Place, Solder Retention, Pick and Place Cap |
| Gender | Receptacle | Receptacle |
| Insulation Color | Black | Black, Gray |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | 10000 | 10000 |
| Mounting Feature | - | Horizontal, Reverse Mount, Horizontal, Mid Mount |
| Mounting Type | Through Hole, Surface Mount, Right Angle | Through Hole, Surface Mount, Right Angle, Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 5 | 5 |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Shell/Shielding Material | Stainless, Steel | Stainless, Steel |
| Shielding | Shielded | Shielded |
| Specifications | USB 2.0 | USB 2.0 |
| Termination | Solder | Solder |
| Voltage - Rated | 30 VAC | 30 VAC |
ZX62 Series
CONN RCP USB2.0 MICRO AB SMD
| Part | Mounting Type | Number of Ports | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Contacts | Mounting Feature | Mating Cycles | Shielding | Termination | Voltage - Rated | Material Flammability Rating | Specifications | Connector Type | Current Rating (Amps) | Insulation Color | Gender | Shell/Shielding Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd ZX62MD1-AB-5P(31) | Surface Mount, Right Angle, Through Hole | 1 | Gold | -30 ░C | 85 °C | 5 | Horizontal | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro AB | 1.8 A | Black | Receptacle | ||
Hirose Electric Co Ltd ZX62D2-AB-5PA8(30) | Surface Mount, Right Angle | 1 | Gold | -30 ░C | 85 °C | 5 | Horizontal | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro AB | 1 A, 1.8 A, 100 mA | Gray | Receptacle | ||
Hirose Electric Co Ltd ZX62D-AB-5P8(30) | Surface Mount, Right Angle, Through Hole | 1 | Gold | -30 ░C | 85 °C | 5 | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro AB | 1 A | Gray | Receptacle | Stainless, Steel | Pick and Place, Solder Retention | |
Hirose Electric Co Ltd ZX62D1-B-5PA(30) | Surface Mount, Right Angle, Through Hole | 1 | Gold | -30 ░C | 85 °C | 5 | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro B | 1.8 A | Black | Receptacle | Stainless, Steel | Pick and Place Cap, Solder Retention | |
Hirose Electric Co Ltd ZX62-AB-5PA(31) | Surface Mount, Right Angle | 1 | Gold | -30 ░C | 85 °C | 5 | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro AB | 1 A | Gray | Receptacle | Stainless, Steel | Pick and Place, Solder Retention | |
Hirose Electric Co Ltd ZX62MD2-B-5PA(30) | Surface Mount, Right Angle, Through Hole | 1 | Gold | -30 ░C | 85 °C | 5 | Horizontal | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro B | 1.8 A | Black | Receptacle | ||
Hirose Electric Co Ltd ZX62R-AB-5P(30) | Surface Mount, Right Angle | 1 | Gold | -30 ░C | 85 °C | 5 | Horizontal, Reverse Mount | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro AB | 1.8 A | Gray | Receptacle | Stainless, Steel | Pick and Place, Solder Retention |
Hirose Electric Co Ltd ZX62MD1-B-5P(31) | Board Edge, Cutout, Surface Mount, Through Hole, Right Angle | 1 | Gold | -30 ░C | 85 °C | 5 | Horizontal, Mid Mount | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro B | 1.8 A | Black | Receptacle | Stainless, Steel | Pick and Place, Solder Retention |
Hirose Electric Co Ltd ZX62D-B-5PA5 | Surface Mount, Right Angle, Through Hole | 1 | Gold | -30 ░C | 85 °C | 5 | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro B | 1.8 A | Black | Receptacle | Stainless, Steel | Pick and Place, Solder Retention | |
Hirose Electric Co Ltd ZX62-B-5PA(33) | Surface Mount, Right Angle | 1 | Gold | -30 ░C | 85 °C | 5 | 10000 | Shielded | Solder | 30 VAC | UL94 V-0 | USB 2.0 | USB - micro B | 1 A | Black | Receptacle | Stainless, Steel | Pick and Place, Solder Retention |
