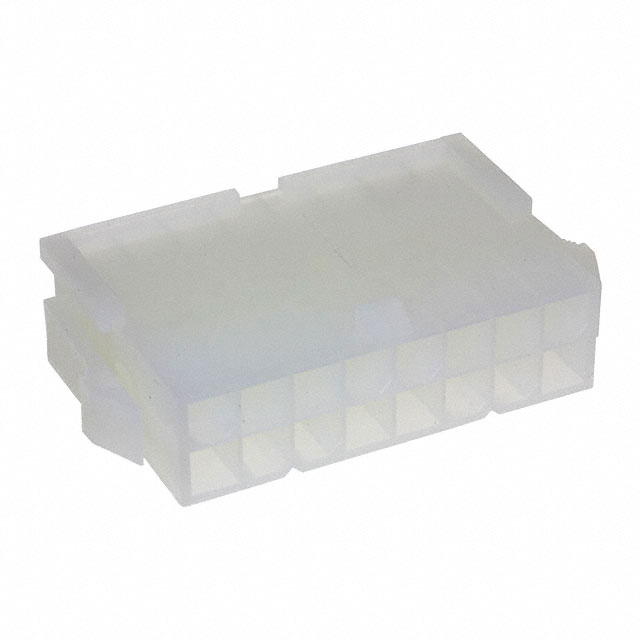

Specification	DMF-16-W

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.165 in
Row Spacing	0.165 in

DMF Series

Part	Note	Row Spacing	Number of Positions	Pitch	Contact Termination	Contact Type	Insulation Material	Fastening Type	Connector Type	Mounting Type	Number of Rows	Color	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Shrouding	Number of Positions Loaded	Voltage Rating	Current Rating	Contact Shape	Contact Finish - Mating	Style	Contact Material	Row Spacing - Mating	Pitch - Mating	Insulation Height	Insulation Color
Adam Tech DMF-16-W	Contacts Not Included	0.165 in	16	0.165 in	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Panel Mount Snap-In	2	Natural	-40 °C	105 °C
Adam Tech DMF-10-R-N			10			Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Right Angle Through Hole	2		-25 °C	120 °C	Solder	0.13 in	UL94 V-2	Tin	Shrouded - 4 Wall	All	600 V	7 A	Square	Tin	Board Cable/Wire	Brass	0.217 in	0.165 in	0.394 in	Natural
Adam Tech DMF-18-W	Contacts Not Included	0.165 in	18	0.165 in	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Panel Mount Snap-In	2	Natural	-40 °C	105 °C
Adam Tech DMF-02-S			2			Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Through Hole	2		-25 °C	85 °C	Solder	0.134 in	UL94 V-2	Tin	Shrouded - 4 Wall	All	250 V	7 A	Square	Tin	Board Cable/Wire	Brass	0.165 in	0.165 in	0.504 in	Natural
Adam Tech DMF-06-W-NE	Contacts Not Included	0.165 in	6	0.165 in	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Free Hanging (In-Line)	2	Natural	-40 °C	105 °C
Adam Tech DMF-16-R-N			16			Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Right Angle Through Hole	2		-25 °C	120 °C	Solder	0.13 in	UL94 V-2	Tin	Shrouded - 4 Wall	All	600 V	6 A	Square	Tin	Board Cable/Wire	Brass	0.217 in	0.165 in	0.394 in	Natural
Adam Tech DMF-12-W	Contacts Not Included	0.165 in	12	0.165 in	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Panel Mount Snap-In	2	Natural	-40 °C	105 °C
Adam Tech DMF-08-S			8			Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Through Hole	2		-25 °C	85 °C	Solder	0.134 in	UL94 V-2	Tin	Shrouded - 4 Wall	All	250 V	7 A	Square	Tin	Board Cable/Wire	Brass	0.165 in	0.165 in	0.504 in	Natural
Adam Tech DMF-10-S			10			Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Through Hole	2		-25 °C	85 °C	Solder	0.134 in	UL94 V-2	Tin	Shrouded - 4 Wall	All	250 V	7 A	Square	Tin	Board Cable/Wire	Brass	0.165 in	0.165 in	0.504 in	Natural
Adam Tech DMF-04-R-N			4			Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Right Angle Through Hole	2		-25 °C	120 °C	Solder	0.13 in	UL94 V-2	Tin	Shrouded - 4 Wall	All	600 V	8 A	Square	Tin	Board Cable/Wire	Brass	0.217 in	0.165 in	0.394 in	Natural
