DMF-18-W

Active

Adam Tech

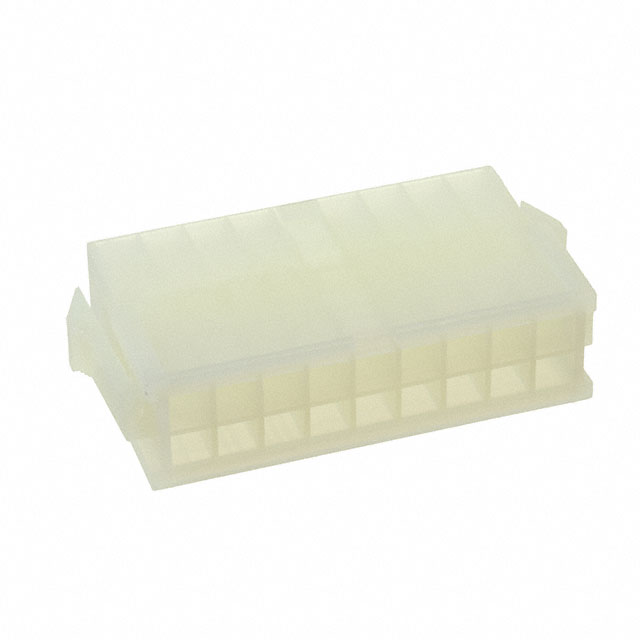

CONN PLUG HSG 18POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

DMF-18-W

Active

Adam Tech

CONN PLUG HSG 18POS 4.20MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMF-18-W

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

DMF Series

Part	Mounting Type	Row Spacing	Row Spacing	Contact Type	Number of Rows	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Positions	Insulation Material	Note	Pitch [x]	Pitch [x]	Fastening Type	Insulation Color	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Number of Positions	Voltage Rating	Termination	Style	Contact Shape	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech DMF-16-W	Panel Mount Snap-In	4.2 mm	0.165 in	Female Socket	2	Plug	Natural	-40 °C	105 ░C	Crimp	16	Polyamide (PA66) Nylon 6/6	Contacts Not Included	4.2 mm	0.165 in	Locking Ramp
Adam Tech DMF-10-R-N	Through Hole Right Angle			Male Pin	2	Header		-25 °C	120 °C			Polyamide (PA66) Nylon 6/6				Locking Ramp	Natural	All	7 A	4.2 mm	0.165 in	UL94 V-2	Brass	0.217 in	5.51 mm	Tin	10	600 VAC	Solder	Board to Cable/Wire	Square	0.13 in	3.3 mm	Shrouded - 4 Wall	10 mm	0.394 "
Adam Tech DMF-18-W	Panel Mount Snap-In	4.2 mm	0.165 in	Female Socket	2	Plug	Natural	-40 °C	105 ░C	Crimp		Polyamide (PA66) Nylon 6/6	Contacts Not Included	4.2 mm	0.165 in	Locking Ramp											18
Adam Tech DMF-02-S	Through Hole			Male Pin	2	Header		-25 °C	85 °C			Polyamide (PA66) Nylon 6/6				Locking Ramp	Natural	All	7 A	4.2 mm	0.165 in	UL94 V-2	Brass	0.165 in	4.2 mm	Tin	2	250 VAC	Solder	Board to Cable/Wire	Square			Shrouded - 4 Wall	12.8 mm	0.504 in	0.134 in	3.4 mm
Adam Tech DMF-06-W-NE	Free Hanging (In-Line)	4.2 mm	0.165 in	Female Socket	2	Plug	Natural	-40 °C	105 ░C	Crimp		Polyamide (PA66) Nylon 6/6	Contacts Not Included	4.2 mm	0.165 in	Locking Ramp											6
Adam Tech DMF-16-R-N	Through Hole Right Angle			Male Pin	2	Header		-25 °C	120 °C		16	Polyamide (PA66) Nylon 6/6				Locking Ramp	Natural	All	6 A	4.2 mm	0.165 in	UL94 V-2	Brass	0.217 in	5.51 mm	Tin		600 VAC	Solder	Board to Cable/Wire	Square	0.13 in	3.3 mm	Shrouded - 4 Wall	10 mm	0.394 "
Adam Tech DMF-10-S	Through Hole			Male Pin	2	Header		-25 °C	85 °C			Polyamide (PA66) Nylon 6/6				Locking Ramp	Natural	All	7 A	4.2 mm	0.165 in	UL94 V-2	Brass	0.165 in	4.2 mm	Tin	10	250 VAC	Solder	Board to Cable/Wire	Square			Shrouded - 4 Wall	12.8 mm	0.504 in	0.134 in	3.4 mm
Adam Tech DMF-04-R-N	Through Hole Right Angle			Male Pin	2	Header		-25 °C	120 °C			Polyamide (PA66) Nylon 6/6				Locking Ramp	Natural	All	8 A	4.2 mm	0.165 in	UL94 V-2	Brass	0.217 in	5.51 mm	Tin	4	600 VAC	Solder	Board to Cable/Wire	Square	0.13 in	3.3 mm	Shrouded - 4 Wall	10 mm	0.394 "
Adam Tech DMF-24-W-NE	Free Hanging (In-Line)	4.2 mm	0.165 in	Female Socket	2	Plug	Natural	-40 °C	105 ░C	Crimp		Polyamide (PA66) Nylon 6/6	Contacts Not Included	4.2 mm	0.165 in	Locking Ramp											24
Adam Tech DMF-08-W-NE	Free Hanging (In-Line)	4.2 mm	0.165 in	Female Socket	2	Plug	Natural	-40 °C	105 ░C	Crimp		Polyamide (PA66) Nylon 6/6	Contacts Not Included	4.2 mm	0.165 in	Locking Ramp											8
