805-10-012-00-006000
ActiveMill-Max Manufacturing Corp.

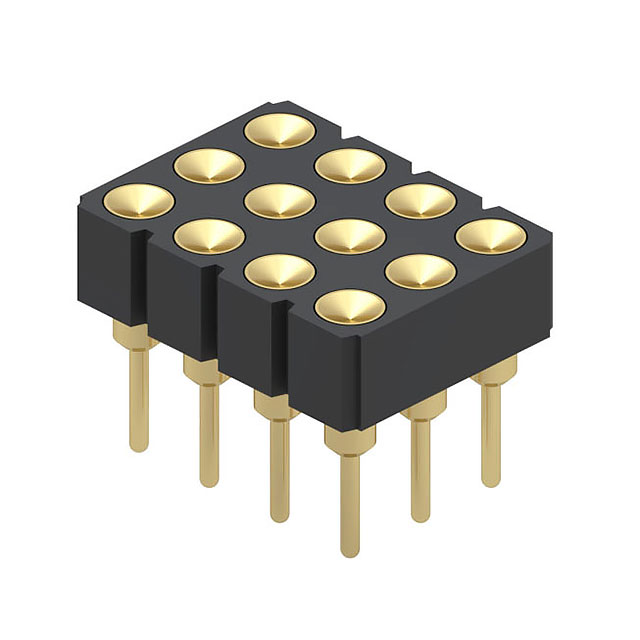

CONN SPRING TARGET 12POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
805-10-012-00-006000
ActiveMill-Max Manufacturing Corp.
CONN SPRING TARGET 12POS PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 805-10-012-00-006000 |
|---|---|
| Connector Type | Mating Target |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Material | Brass Alloy |
| Mounting Type | Through Hole |
| Number of Contacts | 12 |
| Number of Rows | 3 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.59 | |
| 10 | $ 5.08 | |||
| 46 | $ 4.70 | |||
| 92 | $ 4.47 | |||
| 276 | $ 3.92 | |||
| 506 | $ 3.80 | |||
| 1012 | $ 3.24 | |||
| 2530 | $ 3.02 | |||
Description
General part information
805-10 Series
12 Position Spring Mating Target Connector Through Hole
Documents
Technical documentation and resources
No documents available
