L6R120DM-190-C14

Active

Tri-Mag, LLC

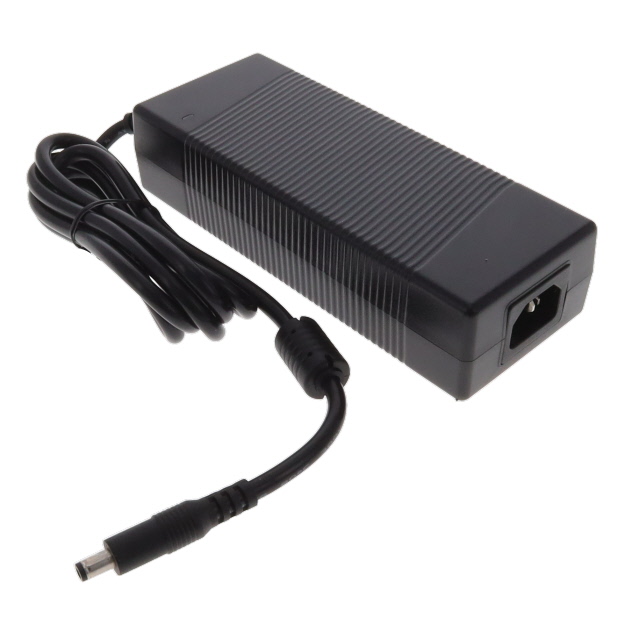

AC/DC DESKTOP ADAPTER 19V 120W

L6R120DM-190-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 19V 120W

Description Specifications Series Pricing CAD Documents

Description

General part information

L6R120 Series

19V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical Specifications

Parameters and characteristics for this part

Specification	L6R120DM-190-C14

Applications	Medical
Approval Agency	TUV, cULus, FCC, EN, CE
Cord Length	59 in
Current - Output (Max)	6.3 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	150 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.5 mm
Output Connector Length	9.5 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	120 W
Region Utilized	International
Size / Dimension Height	1.54 in
Size / Dimension Length	6.5 in
Size / Dimension Width	2.6 in
Standard Number	60601-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	19 V

L6R120 Series

Part	Efficiency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Cord Length	Approval Agency	Current - Output (Max)	Operating Temperature (Max)	Input Connector	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Applications	Form	Region Utilized	Voltage - Output	Standard Number	No Load Power Consumption (Max)	Input Type	Output Connector	Power (Watts)	Weight	Output Connector Length	Output Connector O.D.	Output Connector I.D.	Polarization
Tri-Mag, LLC L6R120DM-150-C14	Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	8 A	40 °C	IEC 320-C14	2.6 in	6.5 in	1.54 in	Medical	Desktop (Class I)	International	15 V	60601-1	150 mW	Cord (Sold Separately)	4 Pin Power DIN	120 W
Tri-Mag, LLC L6R120D-190-C14	CoC Tier 2 Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	6.3 A	40 °C	IEC 320-C14	2.6 in	6.61 in	1.54 in	ITE (Commercial)	Desktop (Class I)	International	19 V	62368-1	210 mW	Cord (Sold Separately)	4 Pin Power DIN	120 W	1.301 lb
Tri-Mag, LLC L6R120DM-180-C8	Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	6.67 A	40 °C	IEC 320-C8	2.6 in	6.5 in	1.54 in	Medical	Desktop (Class II)	International	18 V	60601-1	150 mW	Cord (Sold Separately)	Barrel Plug	120 W		9.5 mm	5.5 mm	2.5 mm	Positive Center
Tri-Mag, LLC L6R120DM-200-C8	Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	6 A	40 °C	IEC 320-C8	2.6 in	6.5 in	1.54 in	Medical	Desktop (Class II)	International	20 V	60601-1	150 mW	Cord (Sold Separately)	Barrel Plug	120 W		9.5 mm	5.5 mm	2.5 mm	Positive Center
Tri-Mag, LLC L6R120D-560-C6	CoC Tier 2 Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	2.14 A	40 °C	IEC 320-C6	2.6 in	6.61 in	1.54 in	ITE (Commercial)	Desktop (Class I)	International	56 V	62368-1	210 mW	Cord (Sold Separately)	Barrel Plug	120 W	1.301 lb	9.5 mm	5.5 mm	2.5 mm	Positive Center
Tri-Mag, LLC L6R120DM-240-C8	Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	5 A	40 °C	IEC 320-C8	2.6 in	6.5 in	1.54 in	Medical	Desktop (Class II)	International	24 V	60601-1	150 mW	Cord (Sold Separately)	Barrel Plug	120 W		9.5 mm	5.5 mm	2.5 mm	Positive Center
Tri-Mag, LLC L6R120D-200-C6	CoC Tier 2 Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	6 A	40 °C	IEC 320-C6	2.6 in	6.61 in	1.54 in	ITE (Commercial)	Desktop (Class I)	International	20 V	62368-1	210 mW	Cord (Sold Separately)	4 Pin Power DIN	120 W	1.301 lb
Tri-Mag, LLC L6R120DM-480-C8	Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	2.5 A	40 °C	IEC 320-C8	2.6 in	6.5 in	1.54 in	Medical	Desktop (Class II)	International	48 V	60601-1	150 mW	Cord (Sold Separately)	Barrel Plug	120 W		9.5 mm	5.5 mm	2.5 mm	Positive Center
Tri-Mag, LLC L6R120DM-190-C14	Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	6.3 A	40 °C	IEC 320-C14	2.6 in	6.5 in	1.54 in	Medical	Desktop (Class I)	International	19 V	60601-1	150 mW	Cord (Sold Separately)	Barrel Plug	120 W		9.5 mm	5.5 mm	2.5 mm	Positive Center
Tri-Mag, LLC L6R120D-480-C6	CoC Tier 2 Level VI	90 V	264 V	59 in	CE cULus EN FCC TUV	2.5 A	40 °C	IEC 320-C6	2.6 in	6.61 in	1.54 in	ITE (Commercial)	Desktop (Class I)	International	48 V	62368-1	210 mW	Cord (Sold Separately)	Barrel Plug	120 W	1.301 lb	9.5 mm	5.5 mm	2.5 mm	Positive Center

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

L6R120DM-190-C14 | Datasheet
