L6R120DM-200-C8

Active

Tri-Mag, LLC

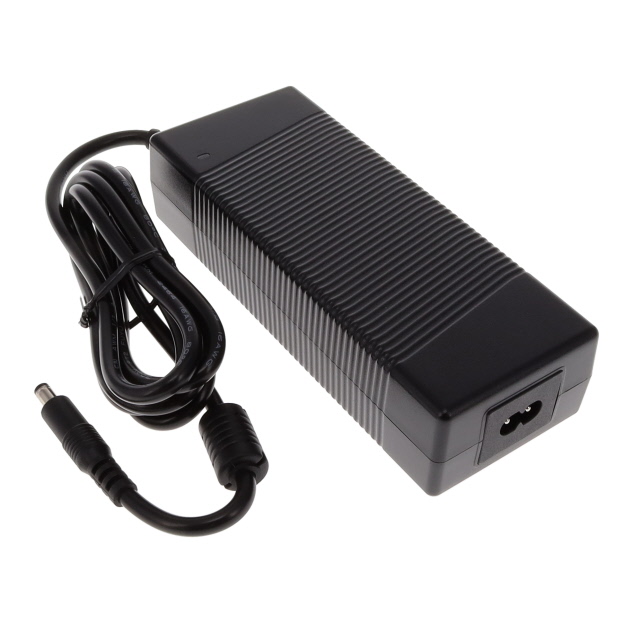

AC/DC DESKTOP ADAPTER 20V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R120DM-200-C8

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 20V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R120DM-200-C8

Applications	Medical
Approval Agency	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	6 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	165 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66 mm
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39 mm
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	20 V

L6R120 Series

Part	Efficiency	Standard Number	Voltage - Output	Input Connector	Power (Watts)	Approval Agency	Form	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	No Load Power Consumption [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Output Connector	Output Connector	Applications	Current - Output (Max) [Max]	Input Type	Cord Length	Cord Length	Weight	Weight	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [y]	Polarization	Output Connector [diameter]	Output Connector [x]
Tri-Mag, LLC L6R120DM-150-C14	Level VI	60601-1	15 VDC	IEC 320-C14	120 W	CE cULus EN FCC TUV	Desktop (Class I)	International	90 VAC	264 VAC	40 °C	150 mW	2.6 "	165 mm	1.54 "	39 mm	66 mm	6.5 in	4 Pin	Power DIN	Medical	8 A	Cord	1.5 m	59 in
Tri-Mag, LLC L6R120D-190-C14	CoC Tier 2 Level VI	62368-1	19 V	IEC 320-C14	120 W	CE cULus EN FCC TUV	Desktop (Class I)	International	90 VAC	264 VAC	40 °C		2.6 "	168 mm	1.54 "			6.61 in	4 Pin	Power DIN	ITE (Commercial)	6.3 A	Cord	1.5 m	59 in	1.301 lb	590 g	210 mW	39 mm	66 mm
Tri-Mag, LLC L6R120DM-180-C8	Level VI	60601-1	18 V	IEC 320-C8	120 W	CE cULus EN FCC TUV	Desktop (Class II)	International	90 VAC	264 VAC	40 °C	150 mW	2.6 "	165 mm	1.54 "	39 mm	66 mm	6.5 in		Barrel Plug	Medical	6.67 A	Cord	1.5 m	59 in						Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120DM-200-C8	Level VI	60601-1	20 V	IEC 320-C8	120 W	CE cULus EN FCC TUV	Desktop (Class II)	International	90 VAC	264 VAC	40 °C	150 mW	2.6 "	165 mm	1.54 "	39 mm	66 mm	6.5 in		Barrel Plug	Medical	6 A	Cord	1.5 m	59 in						Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120D-560-C6	CoC Tier 2 Level VI	62368-1	56 V	IEC 320-C6	120 W	CE cULus EN FCC TUV	Desktop (Class I)	International	90 VAC	264 VAC	40 °C		2.6 "	168 mm	1.54 "			6.61 in		Barrel Plug	ITE (Commercial)	2.14 A	Cord	1.5 m	59 in	1.301 lb	590 g	210 mW	39 mm	66 mm	Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120DM-240-C8	Level VI	60601-1	24 V	IEC 320-C8	120 W	CE cULus EN FCC TUV	Desktop (Class II)	International	90 VAC	264 VAC	40 °C	150 mW	2.6 "	165 mm	1.54 "	39 mm	66 mm	6.5 in		Barrel Plug	Medical	5 A	Cord	1.5 m	59 in						Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120D-200-C6	CoC Tier 2 Level VI	62368-1	20 V	IEC 320-C6	120 W	CE cULus EN FCC TUV	Desktop (Class I)	International	90 VAC	264 VAC	40 °C		2.6 "	168 mm	1.54 "			6.61 in	4 Pin	Power DIN	ITE (Commercial)	6 A	Cord	1.5 m	59 in	1.301 lb	590 g	210 mW	39 mm	66 mm
Tri-Mag, LLC L6R120DM-480-C8	Level VI	60601-1	48 V	IEC 320-C8	120 W	CE cULus EN FCC TUV	Desktop (Class II)	International	90 VAC	264 VAC	40 °C	150 mW	2.6 "	165 mm	1.54 "	39 mm	66 mm	6.5 in		Barrel Plug	Medical	2.5 A	Cord	1.5 m	59 in						Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120DM-190-C14	Level VI	60601-1	19 V	IEC 320-C14	120 W	CE cULus EN FCC TUV	Desktop (Class I)	International	90 VAC	264 VAC	40 °C	150 mW	2.6 "	165 mm	1.54 "	39 mm	66 mm	6.5 in		Barrel Plug	Medical	6.3 A	Cord	1.5 m	59 in						Positive Center	2.5 mm 5.5 mm	9.5 mm
Tri-Mag, LLC L6R120D-480-C6	CoC Tier 2 Level VI	62368-1	48 V	IEC 320-C6	120 W	CE cULus EN FCC TUV	Desktop (Class I)	International	90 VAC	264 VAC	40 °C		2.6 "	168 mm	1.54 "			6.61 in		Barrel Plug	ITE (Commercial)	2.5 A	Cord	1.5 m	59 in	1.301 lb	590 g	210 mW	39 mm	66 mm	Positive Center	2.5 mm 5.5 mm	9.5 mm
