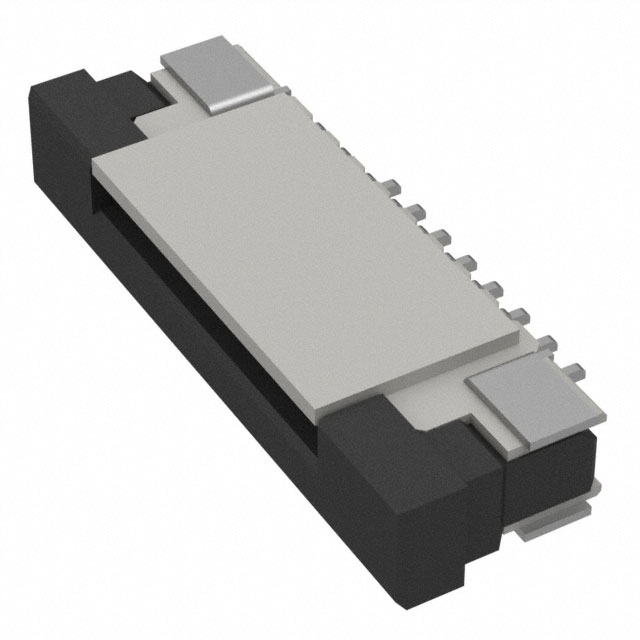

Specification	FFC3B11-08-T

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating	400 mA
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.098 in
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Flip Lock, Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20 cycles
Mounting Type	Right Angle, Surface Mount
Number of Positions	8
Operating Temperature (Max)	125 °C, 85 °C
Operating Temperature (Min)	-40 °C, -25 °C
Pitch	0.039 in
Termination	Solder
Voltage Rating	50 V

FFC3B11 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Locking Feature	Cable End Type	Mounting Type	Contact Material	Pitch	Material Flammability Rating	Height Above Board	Number of Positions	Connector/Contact Type	Contact Finish	Termination	Actuator Material	Voltage Rating	Flat Flex Type	Housing Material	FFC, FCB Thickness	Features	Housing Color	Mating Cycles	Current Rating	Actuator Color
GCT FFC3B11-20-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	20	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-09-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	9	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-08-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	8	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-04-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	4	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-12-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	12	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-40-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	40	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-06-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	6	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-10-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	10	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-30-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	30	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
GCT FFC3B11-18-T	85 °C 125 °C	-40 °C -25 °C	Flip Lock Slide Lock	Straight Tapered	Right Angle Surface Mount	Phosphor Bronze	0.039 in	UL94 V-0	0.098 in	18	Contacts Top	Tin	Solder	Thermoplastic	50 V	FFC FPC	Thermoplastic	0.3 mm	Solder Retention	Natural	20 cycles	400 mA	Black
