FFC3B11-18-T

Active

GCT

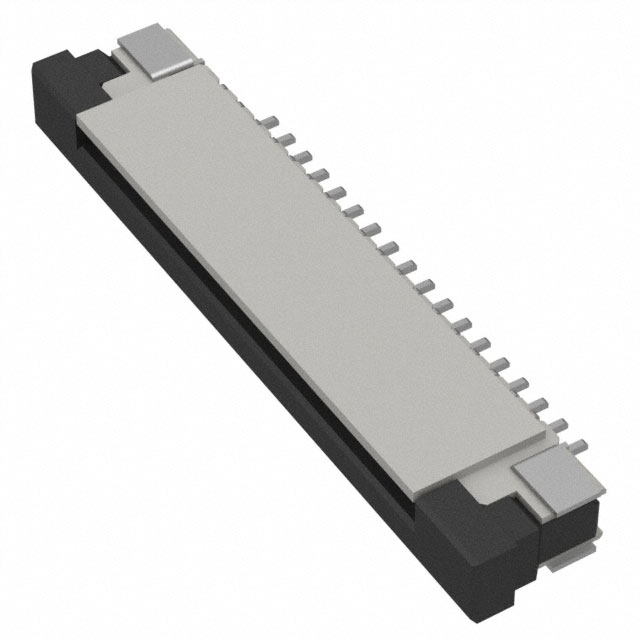

18W, 1.0MM FFC CONN, R/A,TOP CONT, SLIDE, H2.5MM,SMT,TIN,T&R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet GCT FFC Product Slection Guide

FFC3B11-18-T

Active

GCT

18W, 1.0MM FFC CONN, R/A,TOP CONT, SLIDE, H2.5MM,SMT,TIN,T&R

Deep-Dive with AI

DocumentsDatasheet GCT FFC Product Slection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFC3B11-18-T

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	400 mA
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.098 in
Height Above Board	2.5 mm
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	50 V

FFC3B11 Series

Part	Termination	Contact Material	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Current Rating (Amps)	Cable End Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Connector/Contact Type	Locking Feature	Actuator Color	Mating Cycles	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Actuator Material	Number of Positions	Voltage Rating	Flat Flex Type	Material Flammability Rating	Housing Color
GCT FFC3B11-20-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	20	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-08-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	8	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-04-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	4	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-40-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	40	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-06-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	6	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-10-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	10	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-30-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	30	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-18-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic	18	50 V	FFC FPC	UL94 V-0	Natural
GCT FFC3B11-05-T	Solder	Phosphor Bronze	0.098 in	2.5 mm	Tin	Surface Mount Right Angle	400 mA	Tapered	Solder Retention	-25 °C	85 °C	Thermoplastic	Contacts Top	Slide Lock	Black	20	0.3 mm	0.039 in	1 mm	Thermoplastic		50 V	FFC FPC	UL94 V-0	Natural
