Technical Specifications
Parameters and characteristics for this part
| Specification | 3759/10 100 |
|---|---|
| Cable Type | Round Jacket, Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 15.24 m, 7.62 m |
| Length | 50 ft, 25 ft |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ribbon Width | 11.43 mm |
| Ribbon Width | 0.45 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.32 | |
| 1 | $ 89.27 | |||
| 1 | $ 13.68 | |||
| 5 | $ 73.25 | |||
| 5 | $ 43.16 | |||
| 5 | $ 11.31 | |||
| 10 | $ 67.15 | |||
| 10 | $ 10.44 | |||
| 10 | $ 39.53 | |||
| 25 | $ 35.33 | |||
| 25 | $ 9.36 | |||
| 25 | $ 59.52 | |||
| 50 | $ 54.56 | |||
| 50 | $ 8.60 | |||
| 50 | $ 32.46 | |||
| 100 | $ 50.74 | |||
| 100 | $ 29.60 | |||
| 100 | $ 7.91 | |||
Description
General part information
3759 Series

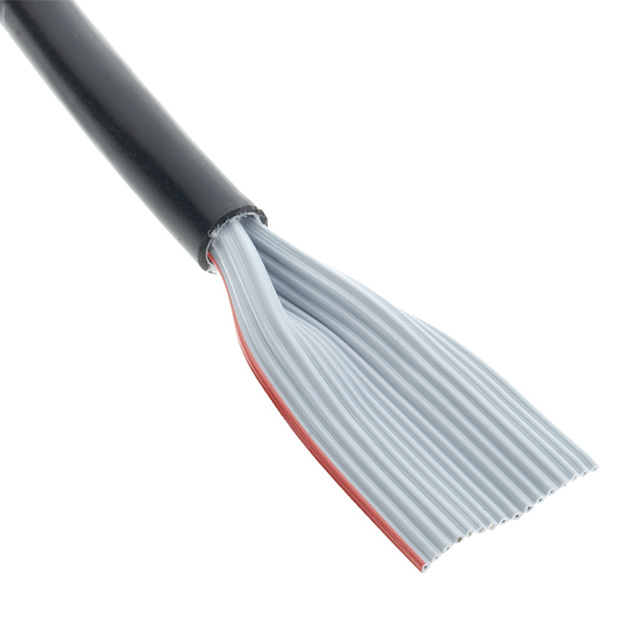

Flat Ribbon Cable Black 10 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 25.0' (7.62m)
