3759/40 100SF

Active

3M (TC)

CBL RIBN 40COND 0.05 BLACK 10'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3759/40 100SF

Active

3M (TC)

CBL RIBN 40COND 0.05 BLACK 10'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3759/40 100SF

Cable Type	Round Jacket, Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	15.24 m, 7.62 m
Length	50 ft, 25 ft
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	40
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Width	1.95 in
Ribbon Width	49.53 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3759 Series

Part	Number of Conductors	First Conductor Mark	Conductor Material	Pitch [x]	Pitch [x]	Jacket (Insulation) Material	Jacket Color	Voltage	Wire Gauge	Insulation Resistance	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	Features	Shielding	Length	Length	Ribbon Width [x]	Ribbon Width [x]	Length [x]	Length [x]
3M (TC) 3759/16SO 300	16	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C	0.75 "	19.05 mm	Zippable	Unshielded	91.44 m	300 ft
3M (TC) 3759/09SOSF	9	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C	0.4 in	10.16 mm	Splice Free	Unshielded
3M (TC) 3759/34 300	34	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C	1.65 "	41.91 mm	Zippable	Unshielded	91.44 m	300 ft
3M (TC) 3759/15SF	15	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C			Splice Free Zippable	Unshielded	91.44 m	300 ft	0.7 in	17.78 mm
3M (TC) 3759/60SO	60	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C		74.93 mm	Zippable	Unshielded	91.44 m	300 ft	2.95 in
3M (TC) 3759/26 300SF	26	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C			Splice Free Zippable	Unshielded	91.44 m	300 ft	1.25 "	31.75 mm
3M (TC) 3759/15SO	15	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C			Zippable	Unshielded			0.7 in	17.78 mm	100 ft	30.48 m
3M (TC) 3759/40 100SF	40	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C	1.95 in	49.53 mm	Splice Free Zippable	Unshielded	7.62 m 15.24 m	25 ft 50 ft			10 ft	3.05 m
3M (TC) 3759/26 100	26	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C			Zippable	Unshielded	15.24 m 304.8 mm	1 ft 50 ft	1.25 "	31.75 mm	10 ft	3.05 m
3M (TC) 3759/10 100	10	Red	Copper Tinned	0.05 in	1.27 mm	Poly-Vinyl Chloride (PVC)	Black	300 V	28 AWG	10 GOhm	Flat Cable Round Jacket	7	36 AWG	-20 C	80 C	0.45 in	11.43 mm	Zippable	Unshielded	7.62 m 15.24 m	25 ft 50 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.35
		1	$ 26.15
		1	$ 171.17
		1	$ 96.79
		5	$ 139.75
		5	$ 21.60
		5	$ 79.42
		5	$ 37.41
		10	$ 34.26
		10	$ 19.86
		10	$ 128.17
		10	$ 72.80
		25	$ 64.53
		25	$ 30.62
		25	$ 17.79
		25	$ 113.29
		50	$ 109.98
		50	$ 59.15
		50	$ 16.30
		50	$ 28.14
		100	$ 55.02
		100	$ 25.65
		100	$ 14.98

Description

General part information

3759 Series

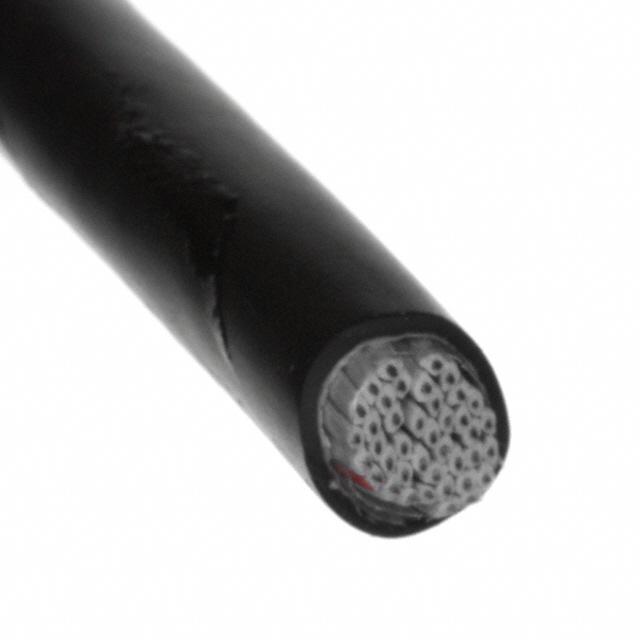

Flat Ribbon Cable Black 40 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 10.0' (3.05m)

Documents

Technical documentation and resources
