M80-5000000M5-06-PM4-00-000
ActiveHarwin Inc.

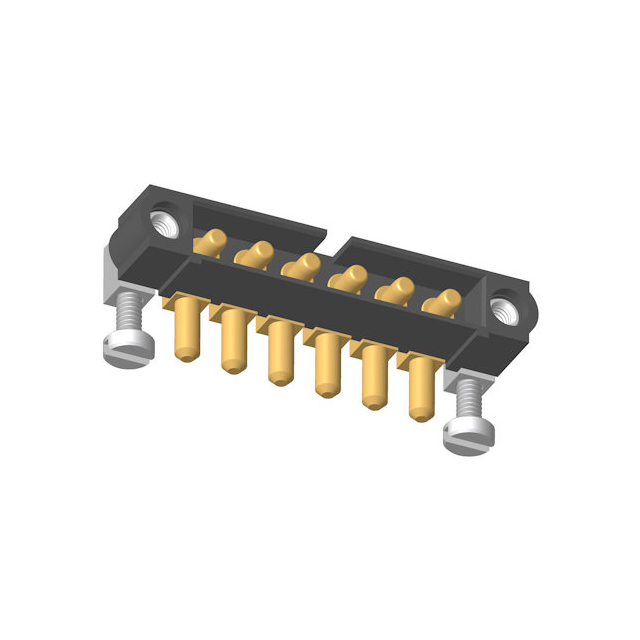

6 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-5000000M5-06-PM4-00-000
ActiveHarwin Inc.
6 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5000000M5-06-PM4-00-000 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.197 in |
| Contact Length - Post | 5 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Power |
| Current Rating (Amps) | 40 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 6 mm |
| Insulation Height | 0.236 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-5000000M5 Series
Connector Header Through Hole, Right Angle 6 position 0.157" (4.00mm)
