M80-5000000M5-10-PM3-00-000
ObsoleteHarwin Inc.

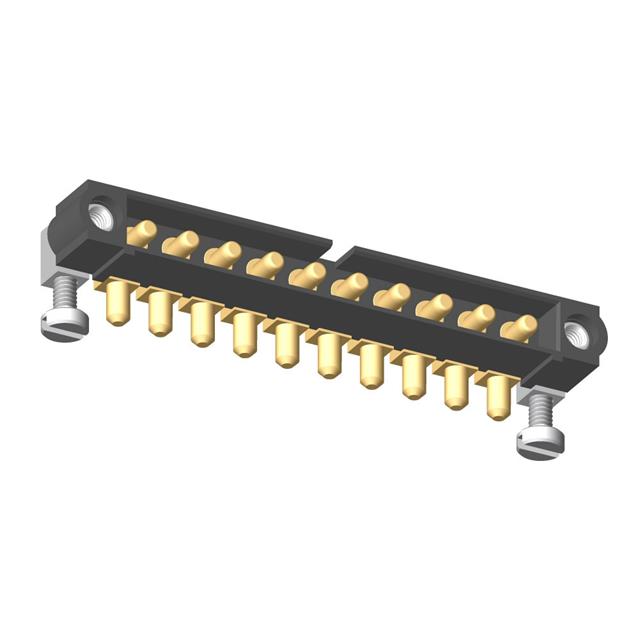

CONN HEADER R/A 10POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
M80-5000000M5-10-PM3-00-000
ObsoleteHarwin Inc.
CONN HEADER R/A 10POS 4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5000000M5-10-PM3-00-000 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Power |
| Current Rating (Amps) | 40 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.218 in |
| Insulation Height | 5.55 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-5000000M5 Series
| Part | Contact Finish - Mating | Contact Type | Number of Rows | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Style | Insulation Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Voltage Rating | Contact Material | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Color | Connector Type | Features | Number of Positions Loaded | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 6 | 30 Áin | 0.76 Ám | UL94 V-0 | 800 V | Copper Alloy | 40 A | 3.5 mm | 0.138 in | 6 mm | 0.236 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All | |
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 10 | 30 Áin | 0.76 Ám | UL94 V-0 | 800 V | Copper Alloy | 40 A | 3.5 mm | 0.138 in | 5.55 mm | 0.218 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All | |
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 150 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 6 | UL94 V-0 | 800 V | Copper Alloy | 40 A | 5 mm | 0.197 in | 6 mm | 0.236 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All | Gold | ||
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 8 | 10 çin | 0.25 çm | UL94 V-0 | 800 V | Copper Alloy | 20 A | 3.5 mm | 0.138 in | 5.55 mm | 0.218 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All | |
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 10 | 10 çin | 0.25 çm | UL94 V-0 | 800 V | Copper Alloy | 20 A | 3.5 mm | 0.138 in | 5.55 mm | 0.218 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All | |
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 8 | 30 Áin | 0.76 Ám | UL94 V-0 | 800 V | Copper Alloy | 40 A | 3.5 mm | 0.138 in | 5.55 mm | 0.218 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All | |
Harwin Inc. | Gold | Male Pin Power | 1 | Circular | -55 °C | 125 °C | Shrouded - 4 Wall | Board to Cable/Wire | Polyphenylene Sulfide (PPS) Glass Filled | 4 | 10 çin | 0.25 çm | UL94 V-0 | 800 V | Copper Alloy | 20 A | 3.5 mm | 0.138 in | 5.55 mm | 0.218 in | Solder | Through Hole Right Angle | 0.157 " | 4 mm | Black | Header | Keying Slot Mating Flange Mounting Flange Mounting Hardware | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M80-5000000M5 Series
Connector Header Through Hole, Right Angle 10 position 0.157" (4.00mm)
