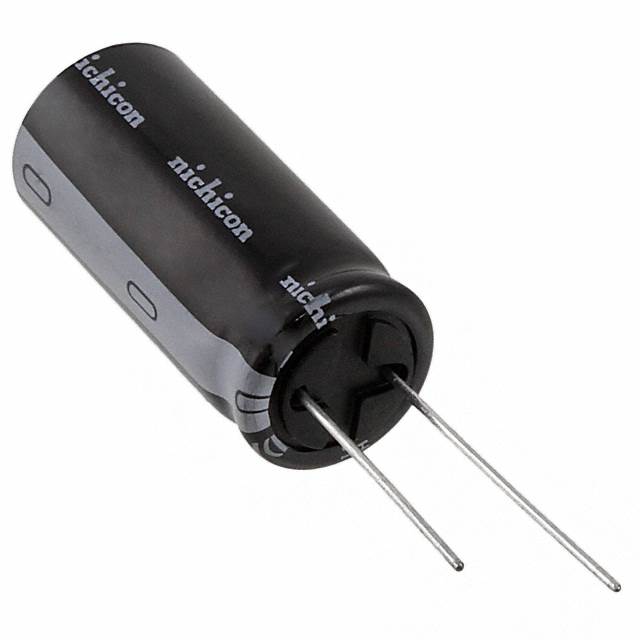

UVY1C103MHD

Nichicon

ELECTROLYTIC CAPACITOR, 10000 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiniature Type Taping Spec Datasheet

UVY1C103MHD

Nichicon

ELECTROLYTIC CAPACITOR, 10000 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

DocumentsMiniature Type Taping Spec Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.69
		10	$ 2.07
		50	$ 1.90
		300	$ 1.43
		600	$ 1.27
		1200	$ 1.11
		2700	$ 1.07
		5100	$ 1.03
Newark	Each	100	$ 1.53
		500	$ 1.38
		1000	$ 1.20
		2500	$ 1.08

Description

General part information

UVY1C Series

10000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Miniature Type Taping Spec

Datasheet

Specification	UVY1C103MHD	UVY1C Series

Applications	General Purpose	General Purpose
Capacitance	10000 µF	3.3 - 33000 µF
Height - Seated (Max)	-	0.492 - 1.654 in
Height - Seated (Max)	-	12.5 - 42 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max] [z]	37.5 mm	13 - 52 mm
Height - Seated (Max) [Max] [z]	1.476 in	0.512 - 2.047 in
Lead Spacing	7.5 mm	2.5 - 12.5 mm
Lead Spacing	0.295 in	0.098 - 0.492 in
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	2.2195 A	1.3455 - 816.5 mA
Ripple Current @ Low Frequency	1.93 A	1.17 - 710 mA
Size / Dimension [diameter]	0.63 in	0.248 - 0.984 in
Size / Dimension [diameter]	16 mm	6.3 - 25 mm
Tolerance	20 %	20 %
Voltage - Rated	16 V	16 V

Part

Voltage - Rated

Package / Case

Size / Dimension [diameter]

Tolerance

Mounting Type

Lifetime @ Temp.

Lead Spacing

Ripple Current @ High Frequency

Applications

Polarization

Height - Seated (Max) [Max]

Operating Temperature [Max]

Operating Temperature [Min]

Ripple Current @ Low Frequency

Capacitance

Height - Seated (Max) [Max] [z]

Height - Seated (Max)

Nichicon

UVY1C221MED

16 V

Radial, Can

0.248 in

6.3 mm

20 %

Through Hole

1000 Hrs

0.098 in

2.5 mm

285 mA

General Purpose

Polar

0.492 in

12.5 mm

105 ░C

-55 °C

190 mA

220 µF

Nichicon

UVY1C153MHD

16 V

Radial, Can

0.709 "

18 mm

20 %

Through Hole

2000 Hrs

0.295 in

7.5 mm

2.5415 A

General Purpose

Polar

1.654 in

42 mm

105 ░C

-55 °C

2.21 A

Nichicon

UVY1C331MED

16 V

Radial, Can

0.248 in

6.3 mm

20 %

Through Hole

1000 Hrs

0.098 in

2.5 mm

337.5 mA

General Purpose

Polar

0.492 in

12.5 mm

105 ░C

-55 °C

225 mA

330 µF

Nichicon

UVY1C103MHD

16 V

Radial, Can

0.63 in

16 mm

20 %

Through Hole

2000 Hrs

0.295 in

7.5 mm

2.2195 A

General Purpose

Polar

105 ░C

-55 °C

1.93 A

10000 µF

37.5 mm

1.476 in

Nichicon

UVY1C102MPD

16 V

Radial, Can

0.394 in

10 mm

20 %

Through Hole

2000 Hrs

0.197 in

5 mm

575 mA

General Purpose

Polar

0.551 "

105 ░C

-55 °C

500 mA

1000 µF

14 mm

Nichicon

UVY1C472MHD

16 V

Radial, Can

0.63 in

16 mm

20 %

Through Hole

2000 Hrs

0.295 in

7.5 mm

1.725 A

General Purpose

Polar

105 ░C

-55 °C

1.5 A

4700 µF

27 mm

1.063 in

Nichicon

UVY1C682MHD1TN

16 V

Radial, Can

0.63 in

16 mm

20 %

Through Hole

2000 Hrs

0.295 in

7.5 mm

1.84 A

General Purpose

Polar

105 ░C

-55 °C

1.6 A

6800 µF

27 mm

1.063 in

Nichicon

UVY1C332MHD

16 V

Radial, Can

0.492 in

12.5 mm

20 %

Through Hole

2000 Hrs

0.197 in

5 mm

1.3455 A

General Purpose

Polar

105 ░C

-55 °C

1.17 A

3.3 mF

27 mm

1.063 in

Nichicon

UVY1C471MPD

16 V

Radial, Can

0.315 "

8 mm

20 %

Through Hole

1000 Hrs

0.138 in

3.5 mm

472.5 mA

General Purpose

Polar

105 ░C

-55 °C

315 mA

470 µF

13 mm

0.512 "

Nichicon

UVY1C102MPD1TD

16 V

Radial, Can

0.394 in

10 mm

20 %

Through Hole

2000 Hrs

0.197 in

5 mm

575 mA

General Purpose

Polar

0.551 "

105 ░C

-55 °C

500 mA

1000 µF

14 mm

Part	Voltage - Rated	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Mounting Type	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Applications	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Nichicon UVY1C221MED	16 V	Radial, Can	0.248 in	6.3 mm	20 %	Through Hole	1000 Hrs	0.098 in	2.5 mm	285 mA	General Purpose	Polar	0.492 in	12.5 mm	105 ░C	-55 °C	190 mA	220 µF
Nichicon UVY1C153MHD	16 V	Radial, Can	0.709 "	18 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	2.5415 A	General Purpose	Polar	1.654 in	42 mm	105 ░C	-55 °C	2.21 A
Nichicon UVY1C331MED	16 V	Radial, Can	0.248 in	6.3 mm	20 %	Through Hole	1000 Hrs	0.098 in	2.5 mm	337.5 mA	General Purpose	Polar	0.492 in	12.5 mm	105 ░C	-55 °C	225 mA	330 µF
Nichicon UVY1C103MHD	16 V	Radial, Can	0.63 in	16 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	2.2195 A	General Purpose	Polar			105 ░C	-55 °C	1.93 A	10000 µF	37.5 mm	1.476 in
Nichicon UVY1C102MPD	16 V	Radial, Can	0.394 in	10 mm	20 %	Through Hole	2000 Hrs	0.197 in	5 mm	575 mA	General Purpose	Polar	0.551 "		105 ░C	-55 °C	500 mA	1000 µF			14 mm
Nichicon UVY1C472MHD	16 V	Radial, Can	0.63 in	16 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	1.725 A	General Purpose	Polar			105 ░C	-55 °C	1.5 A	4700 µF	27 mm	1.063 in
Nichicon UVY1C682MHD1TN	16 V	Radial, Can	0.63 in	16 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	1.84 A	General Purpose	Polar			105 ░C	-55 °C	1.6 A	6800 µF	27 mm	1.063 in
Nichicon UVY1C332MHD	16 V	Radial, Can	0.492 in	12.5 mm	20 %	Through Hole	2000 Hrs	0.197 in	5 mm	1.3455 A	General Purpose	Polar			105 ░C	-55 °C	1.17 A	3.3 mF	27 mm	1.063 in
Nichicon UVY1C471MPD	16 V	Radial, Can	0.315 "	8 mm	20 %	Through Hole	1000 Hrs	0.138 in	3.5 mm	472.5 mA	General Purpose	Polar			105 ░C	-55 °C	315 mA	470 µF	13 mm	0.512 "
Nichicon UVY1C102MPD1TD	16 V	Radial, Can	0.394 in	10 mm	20 %	Through Hole	2000 Hrs	0.197 in	5 mm	575 mA	General Purpose	Polar	0.551 "		105 ░C	-55 °C	500 mA	1000 µF			14 mm
