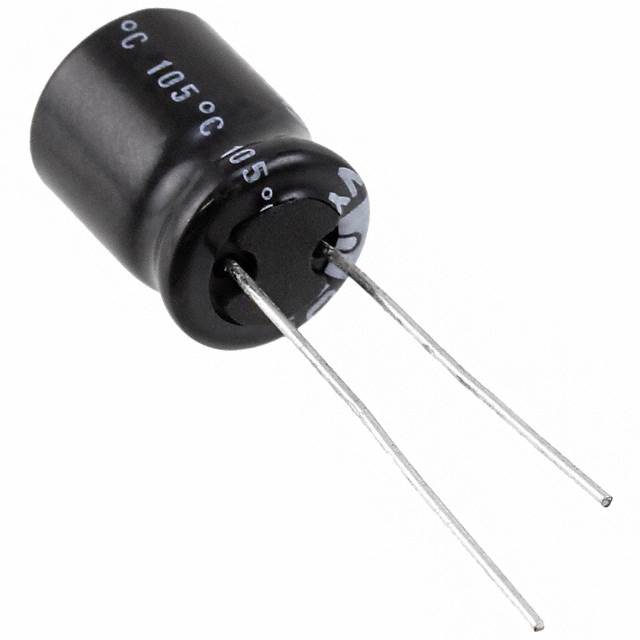

UVY1C102MPD

Active

Nichicon

ELECTROLYTIC CAPACITOR, 1000 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1C102MPD

Active

Nichicon

ELECTROLYTIC CAPACITOR, 1000 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UVY1C102MPD	UVY1C Series

Applications	General Purpose	General Purpose
Capacitance	1000 µF	3.3 - 33000 µF
Height - Seated (Max)	14 mm	14 mm
Height - Seated (Max)	-	12.5 - 42 mm
Height - Seated (Max)	-	13 - 52 mm
Height - Seated (Max)	-	0.512 - 2.047 in
Height - Seated (Max) [Max]	0.551 "	0.492 - 1.654 in
Lead Spacing	5 mm	2.5 - 12.5 mm
Lead Spacing	0.197 in	0.098 - 0.492 in
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	575 mA	1.3455 - 816.5 mA
Ripple Current @ Low Frequency	500 mA	1.17 - 710 mA
Size / Dimension [diameter]	10 mm	6.3 - 25 mm
Size / Dimension [diameter]	0.394 in	0.248 - 0.984 in
Tolerance	20 %	20 %
Voltage - Rated	16 V	16 V

UVY1C Series

ELECTROLYTIC CAPACITOR, 220 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Part	Voltage - Rated	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Mounting Type	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Applications	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Nichicon UVY1C221MED	16 V	Radial, Can	0.248 in	6.3 mm	20 %	Through Hole	1000 Hrs	0.098 in	2.5 mm	285 mA	General Purpose	Polar	0.492 in	12.5 mm	105 ░C	-55 °C	190 mA	220 µF
Nichicon UVY1C153MHD	16 V	Radial, Can	0.709 "	18 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	2.5415 A	General Purpose	Polar	1.654 in	42 mm	105 ░C	-55 °C	2.21 A
Nichicon UVY1C331MED	16 V	Radial, Can	0.248 in	6.3 mm	20 %	Through Hole	1000 Hrs	0.098 in	2.5 mm	337.5 mA	General Purpose	Polar	0.492 in	12.5 mm	105 ░C	-55 °C	225 mA	330 µF
Nichicon UVY1C103MHD	16 V	Radial, Can	0.63 in	16 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	2.2195 A	General Purpose	Polar			105 ░C	-55 °C	1.93 A	10000 µF	37.5 mm	1.476 in
Nichicon UVY1C102MPD	16 V	Radial, Can	0.394 in	10 mm	20 %	Through Hole	2000 Hrs	0.197 in	5 mm	575 mA	General Purpose	Polar	0.551 "		105 ░C	-55 °C	500 mA	1000 µF			14 mm
Nichicon UVY1C472MHD	16 V	Radial, Can	0.63 in	16 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	1.725 A	General Purpose	Polar			105 ░C	-55 °C	1.5 A	4700 µF	27 mm	1.063 in
Nichicon UVY1C682MHD1TN	16 V	Radial, Can	0.63 in	16 mm	20 %	Through Hole	2000 Hrs	0.295 in	7.5 mm	1.84 A	General Purpose	Polar			105 ░C	-55 °C	1.6 A	6800 µF	27 mm	1.063 in
Nichicon UVY1C332MHD	16 V	Radial, Can	0.492 in	12.5 mm	20 %	Through Hole	2000 Hrs	0.197 in	5 mm	1.3455 A	General Purpose	Polar			105 ░C	-55 °C	1.17 A	3.3 mF	27 mm	1.063 in
Nichicon UVY1C471MPD	16 V	Radial, Can	0.315 "	8 mm	20 %	Through Hole	1000 Hrs	0.138 in	3.5 mm	472.5 mA	General Purpose	Polar			105 ░C	-55 °C	315 mA	470 µF	13 mm	0.512 "
Nichicon UVY1C102MPD1TD	16 V	Radial, Can	0.394 in	10 mm	20 %	Through Hole	2000 Hrs	0.197 in	5 mm	575 mA	General Purpose	Polar	0.551 "		105 ░C	-55 °C	500 mA	1000 µF			14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54
		10	$ 0.33
		50	$ 0.24
		100	$ 0.22
		500	$ 0.17
		1000	$ 0.16
		2500	$ 0.16
Newark	Each	1000	$ 0.19
		2500	$ 0.17

Description

General part information

UVY1C Series

1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
