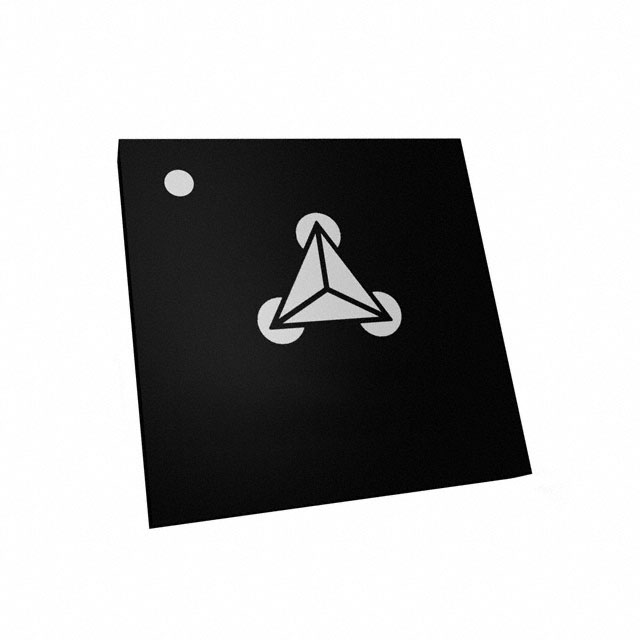

TMC457-BC
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPLR 1.5/3.3V 144BGA
Deep-Dive with AI
Search across all available documentation for this part.
TMC457-BC
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPLR 1.5/3.3V 144BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC457-BC | TMC457 Series |
|---|---|---|
| Applications | Medical | Medical |
| Embedded | - | MCU, 32-Bit |
| Embedded | - | True |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Interface | Step/Direction, SPI | Step/Direction, SPI |
| Motor Type - AC, DC | Piezo | Piezo |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Output Configuration | Step/Direction | Step/Direction |
| Package / Case | 144-LBGA | 144-LBGA |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | SPI Interface(s) |
| Step Resolution | >256 | >256 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 144-FBGA (13x13) | 144-FBGA (13x13) |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC457, TMC246 |
| Voltage - Supply | 1.5 V, 3.3 V | 1.5 - 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 112.21 | |
| 10 | $ 106.91 | |||
| 25 | $ 104.63 | |||
TMC457 Series
IC MTR DRV BIPLR 1.5/3.3V 144BGA
| Part | Mounting Type | Step Resolution | Voltage - Supply | Package / Case | Function | Applications | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Motor Type - AC, DC | Motor Type - Stepper | Interface | Type | Primary Attributes | Utilized IC / Part | Secondary Attributes | Embedded | Embedded | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC457-BC | Surface Mount | >256 | 1.5 V, 3.3 V | 144-LBGA | Controller - Commutation, Direction Management | Medical | Step/Direction | 70 °C | 0 °C | 144-FBGA (13x13) | Piezo | Bipolar | SPI, Step/Direction | |||||||
Analog Devices Inc./Maxim Integrated TMC457-EVAL | Power Management | Motors (Stepper) | TMC246, TMC457 | SPI Interface(s) | 32-Bit, MCU | Board(s) |
Description
General part information
TMC457 Series
Bipolar Motor Driver SPI, Step/Direction 144-FBGA (13x13)
Documents
Technical documentation and resources
No documents available
