622-M25-660-GT1
ActiveEDAC Inc.
EDAC RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
622-M25-660-GT1
ActiveEDAC Inc.
EDAC RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 622-M25-660-GT1 |
|---|---|
| Backset Spacing | 0.283 in |
| Backset Spacing | 7.2 mm |
| Color | Green |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
622-M25 Series
...
| Part | Mounting Type | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Current Rating (Amps) | Contact Finish | Termination | Shell Material, Finish | Backset Spacing | Backset Spacing | Contact Material | Flange Feature | Material Flammability Rating | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Features | Contact Type | Dielectric Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | Nickel Plated Steel | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (4-40) | UL94 V-0 | 2 | 15 µin | 0.38 µm | Black | Board Lock Mounting Brackets Shielded | Signal | Polyamide (PA6T) Nylon 6T | |
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (4-40) | UL94 V-0 | 2 | 15 µin | 0.38 µm | Blue | Shielded | Signal | Polyamide (PA6T) Nylon 6T | ||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | Nickel Plated Steel | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (4-40) | UL94 V-0 | 2 | Blue | Board Lock Mounting Brackets Shielded | Signal | Polyamide (PA6T) Nylon 6T | Flash | ||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (4-40) | UL94 V-0 | 2 | 15 µin | 0.38 µm | Green | Shielded | Signal | Polyamide (PA6T) Nylon 6T | ||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Green | Shielded | Signal | Polyamide (PA6T) Nylon 6T | ||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | 4-40 | UL94 V-0 | 2 | White | Mounting Brackets Shielded | Signal | Polyamide (PA6T) Nylon 6T | Flash | |||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (4-40) | UL94 V-0 | 2 | Green | Shielded | Signal | Polyamide (PA6T) Nylon 6T | Flash | |||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (4-40) | UL94 V-0 | 2 | White | Shielded | Signal | Polyamide (PA6T) Nylon 6T | Flash | |||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | 0.283 in | 7.2 mm | Copper Alloy | 4-40 | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Blue | Board Lock Mounting Brackets Shielded | Signal | Polyamide (PA6T) Nylon 6T | ||
EDAC Inc. | Board Edge Right Angle Through Hole | D-Sub | -55 °C | 125 °C | B DB | 3 | Receptacle Female Sockets | 5 A | Gold | Solder | Nickel Plated Steel | 0.283 in | 7.2 mm | Copper Alloy | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Green | Shielded | Signal | Polyamide (PA6T) Nylon 6T |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
622-M25 Series

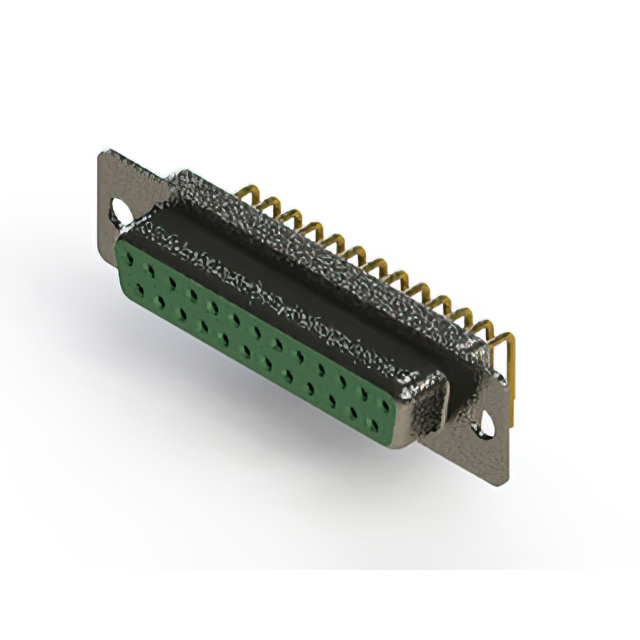

25 Position D-Sub Receptacle, Female Sockets Connector
