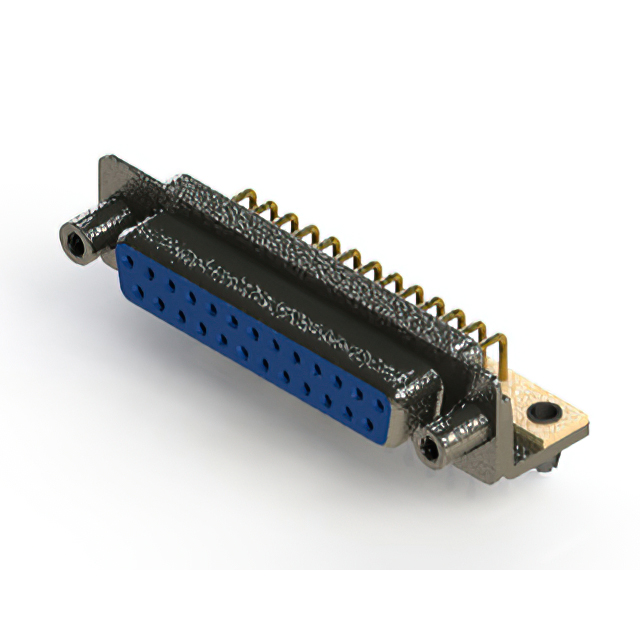

622-M25-660-LT5

Active

EDAC Inc.

25P FEMALE RIGHT-ANGLE 2 5A -55℃~+125℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

622-M25-660-LT5

Active

EDAC Inc.

25P FEMALE RIGHT-ANGLE 2 5A -55℃~+125℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-M25-660-LT5

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

622-M25 Series

...

Part	Mounting Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Current Rating (Amps)	Contact Finish	Termination	Shell Material, Finish	Backset Spacing	Backset Spacing	Contact Material	Flange Feature	Material Flammability Rating	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Features	Contact Type	Dielectric Material	Contact Finish Thickness
EDAC Inc. 622-M25-360-BN3	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder	Nickel Plated Steel	0.283 in	7.2 mm	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	2	15 µin	0.38 µm	Black	Board Lock Mounting Brackets Shielded	Signal	Polyamide (PA6T) Nylon 6T
EDAC Inc. 622-M25-360-LT2	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	2	15 µin	0.38 µm	Blue	Shielded	Signal	Polyamide (PA6T) Nylon 6T
EDAC Inc. 622-M25-260-LN3	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder	Nickel Plated Steel	0.283 in	7.2 mm	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	2			Blue	Board Lock Mounting Brackets Shielded	Signal	Polyamide (PA6T) Nylon 6T	Flash
EDAC Inc. 622-M25-360-GT2	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	2	15 µin	0.38 µm	Green	Shielded	Signal	Polyamide (PA6T) Nylon 6T
EDAC Inc. 622-M25-660-GT1	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	Housing/Shell (Unthreaded)	UL94 V-0	2	30 Áin	0.76 Ám	Green	Shielded	Signal	Polyamide (PA6T) Nylon 6T
EDAC Inc. 622-M25-260-WT6	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	4-40	UL94 V-0	2			White	Mounting Brackets Shielded	Signal	Polyamide (PA6T) Nylon 6T	Flash
EDAC Inc. 622-M25-260-GT2	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	2			Green	Shielded	Signal	Polyamide (PA6T) Nylon 6T	Flash
EDAC Inc. 622-M25-260-WT2	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	Housing/Shell (4-40)	UL94 V-0	2			White	Shielded	Signal	Polyamide (PA6T) Nylon 6T	Flash
EDAC Inc. 622-M25-660-LT5	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder		0.283 in	7.2 mm	Copper Alloy	4-40	UL94 V-0	2	30 Áin	0.76 Ám	Blue	Board Lock Mounting Brackets Shielded	Signal	Polyamide (PA6T) Nylon 6T
EDAC Inc. 622-M25-660-GN1	Board Edge Right Angle Through Hole	D-Sub	-55 °C	125 °C	B DB	3	Receptacle Female Sockets	5 A	Gold	Solder	Nickel Plated Steel	0.283 in	7.2 mm	Copper Alloy	Housing/Shell (Unthreaded)	UL94 V-0	2	30 Áin	0.76 Ám	Green	Shielded	Signal	Polyamide (PA6T) Nylon 6T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 14.42
LCSC	Piece	1	$ 34.95
		200	$ 13.53
		500	$ 13.05
		1000	$ 12.81

Description

General part information

622-M25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
