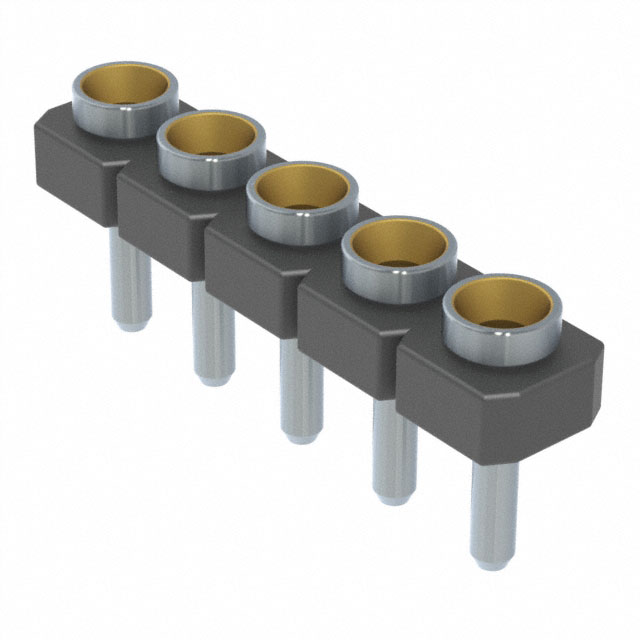

SL-105-T-32

Active

Samtec Inc.

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

SL-105-T-32

Active

Samtec Inc.

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SL-105-T-32

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.05 in
Insulation Height	1.27 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SL-105 Series

Part	Termination	Contact Finish - Mating	Insulation Color	Fastening Type	Insulation Material	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Material	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Samtec Inc. SL-105-T-31	Solder	Gold	Black	Push-Pull	Liquid Crystal Polymer (LCP)	Receptacle	0.05 in	1.27 mm	-55 °C	125 °C	Circular	All	30 Áin	0.76 Ám	1	Beryllium Copper	Female Socket	0.1 in	2.54 mm	Through Hole
Samtec Inc. SL-105-T-32	Solder	Gold	Black	Push-Pull	Liquid Crystal Polymer (LCP)	Receptacle	0.05 in	1.27 mm	-55 °C	125 °C	Circular	All	30 Áin	0.76 Ám	1	Beryllium Copper	Female Socket	0.1 in	2.54 mm	Through Hole
Samtec Inc. SL-105-T-11	Solder	Gold	Black	Push-Pull	Liquid Crystal Polymer (LCP)	Receptacle	0.132 in	3.35 mm	-55 °C	125 °C	Circular	All	30 Áin	0.76 Ám	1	Beryllium Copper	Female Socket	0.1 in	2.54 mm	Through Hole	0.108 in	2.75 mm
Samtec Inc. SL-105-G-31	Solder	Gold	Black	Push-Pull	Liquid Crystal Polymer (LCP)	Receptacle	0.05 in	1.27 mm	-55 °C	125 °C	Circular	All	30 Áin	0.76 Ám	1	Beryllium Copper	Female Socket	0.1 in	2.54 mm	Through Hole			10 çin	0.25 çm	Gold
Samtec Inc. SL-105-TT-10	Solder		Black	Push-Pull	Liquid Crystal Polymer (LCP)	Receptacle	0.122 in	3.1 mm	-55 °C	105 ░C	Circular	All			1	Beryllium Copper	Female Socket	0.1 in	2.54 mm	Through Hole	0.108 in	2.75 mm			Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.90

Description

General part information

SL-105 Series

5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
