JL04V-6A32-17SE-EB-R
ObsoleteJAE Electronics

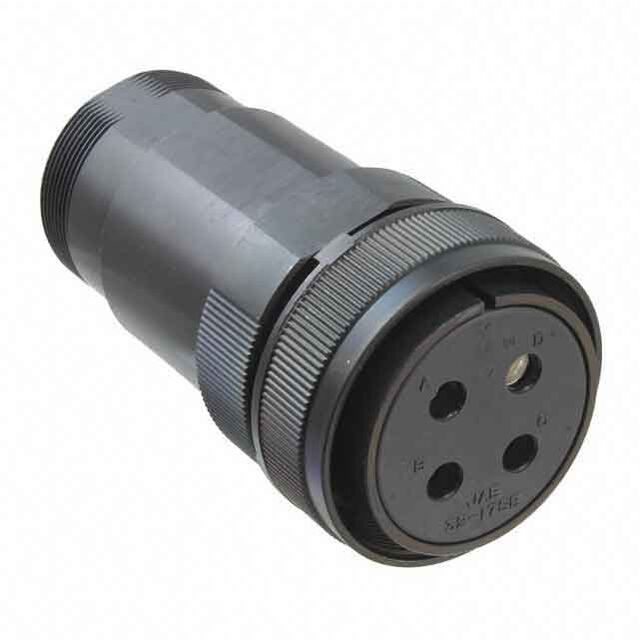

CONN PLUG FMALE 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JL04V-6A32-17SE-EB-R
ObsoleteJAE Electronics
CONN PLUG FMALE 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JL04V-6A32-17SE-EB-R |
|---|---|
| Applications | Medical, Industrial, Test Equipment & Measurement, Telecommunications |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 80 A |
| Features | Backshell, Ground, Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Zinc |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 32-17 |
JL04V-6A Series
| Part | Primary Material | Connector Type | Shell Size - Insert | Contact Material | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Insert Material | Mounting Type | Applications | Orientation | Contact Finish - Mating | Color | Current Rating (Amps) | Features | Shell Finish | Number of Positions | Number of Positions [custom] | Voltage Rating | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Metal | Female Sockets Plug | 10SL-3 | Copper Alloy | 2 | 3 | 1 | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 13 A | Coupling Nut Ground Lug | Zinc | |||||
JAE Electronics | Metal | Female Sockets Plug | 10SL-3 | Copper Alloy | 2 | 3 | 1 | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 13 A | Backshell Coupling Nut Ground Lug | Zinc | |||||
JAE Electronics | Metal | Male Pins Plug | 28-11 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 13 A 23 A | Backshell Coupling Nut Ground | Zinc | 22 | |||||||
JAE Electronics | Metal | Male Pins Plug | 24-11 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 23 A 46 A | Backshell Coupling Nut Ground Lug | Zinc | 8 9 | PE | ||||||
JAE Electronics | Metal | Female Sockets Plug | 18-12 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 13 A | Backshell Coupling Nut Ground | Zinc | 6 | 250 VAC | ||||||
JAE Electronics | Female Sockets Plug | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 13 A 23 A | Backshell Coupling Nut Ground | 8 9 | PE | 100 VAC 250 VAC | 18 | 20 | |||||||
JAE Electronics | Metal | Male Pins Plug | 18-10 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 23 A | Backshell Coupling Nut Ground Lug | Zinc | 4 | |||||||
JAE Electronics | Metal | Female Sockets Plug | 32-17 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 80 A | Backshell Coupling Nut Ground | Zinc | 4 | |||||||
JAE Electronics | Metal | Female Sockets Plug | 24-11 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 23 A 46 A | Backshell Coupling Nut Ground | Zinc | 8 9 | PE | ||||||
JAE Electronics | Metal | Female Sockets Plug | 20-7 | Copper Alloy | IP67 - Dust Tight Waterproof | -55 °C | 125 °C | Aluminum Alloy | Synthetic Resin | Free Hanging (In-Line) | Industrial Medical Telecommunications Test Equipment & Measurement | N | Silver | Black | 13 A | Coupling Nut Ground Lug | Zinc | 8 | 100 VAC 400 VAC |
