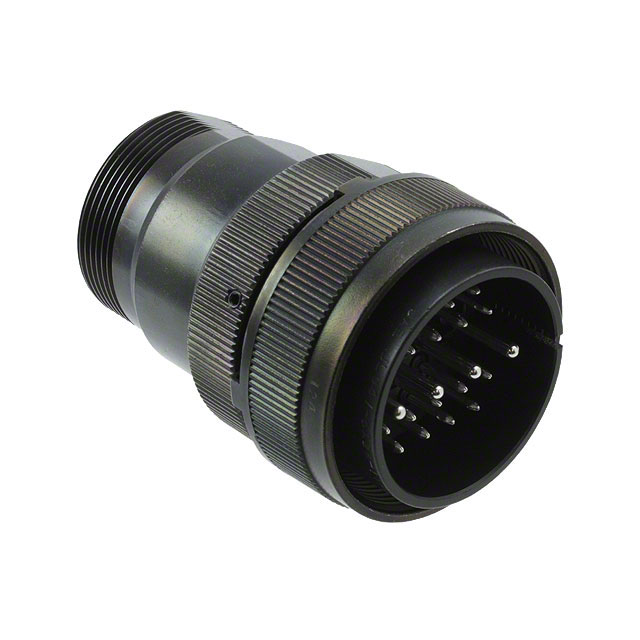

JL04V-6A28-11PE-EB-R

Active

JAE Electronics

CONN PLUG MALE 22P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JL04V-6A28-11PE-EB-R

Active

JAE Electronics

CONN PLUG MALE 22P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL04V-6A28-11PE-EB-R

Applications	Medical, Industrial, Test Equipment & Measurement, Telecommunications
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 23 A
Features	Backshell, Ground, Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line)
Number of Positions	22
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	28-11

JL04V-6A Series

Part	Primary Material	Connector Type	Shell Size - Insert	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Insert Material	Mounting Type	Applications	Orientation	Contact Finish - Mating	Color	Current Rating (Amps)	Features	Shell Finish	Number of Positions	Number of Positions [custom]	Voltage Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics JL04V-6A10SL-3SE-R	Metal	Female Sockets Plug	10SL-3	Copper Alloy	2	3	1	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	13 A	Coupling Nut Ground Lug	Zinc
JAE Electronics JL04V-6A10SL-3SE-EB-R	Metal	Female Sockets Plug	10SL-3	Copper Alloy	2	3	1	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	13 A	Backshell Coupling Nut Ground Lug	Zinc
JAE Electronics JL04V-6A28-11PE-EB-R	Metal	Male Pins Plug	28-11	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	13 A 23 A	Backshell Coupling Nut Ground	Zinc	22
JAE Electronics JL04V-6A24-11PE-EB-R	Metal	Male Pins Plug	24-11	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	23 A 46 A	Backshell Coupling Nut Ground Lug	Zinc	8 9	PE
JAE Electronics JL04V-6A18-12SE-EB-R	Metal	Female Sockets Plug	18-12	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	13 A	Backshell Coupling Nut Ground	Zinc	6		250 VAC
JAE Electronics JL04V-6A20-18SE-EB-RK		Female Sockets Plug		Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C		Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	13 A 23 A	Backshell Coupling Nut Ground		8 9	PE	100 VAC 250 VAC	18	20
JAE Electronics JL04V-6A18-10PE-EB-R	Metal	Male Pins Plug	18-10	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	23 A	Backshell Coupling Nut Ground Lug	Zinc	4
JAE Electronics JL04V-6A32-17SE-EB-R	Metal	Female Sockets Plug	32-17	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	80 A	Backshell Coupling Nut Ground	Zinc	4
JAE Electronics JL04V-6A24-11SE-EB-R	Metal	Female Sockets Plug	24-11	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	23 A 46 A	Backshell Coupling Nut Ground	Zinc	8 9	PE
JAE Electronics JL04V-6A20-7SE-R	Metal	Female Sockets Plug	20-7	Copper Alloy				IP67 - Dust Tight Waterproof	-55 °C	125 °C	Aluminum Alloy	Synthetic Resin	Free Hanging (In-Line)	Industrial Medical Telecommunications Test Equipment & Measurement	N	Silver	Black	13 A	Coupling Nut Ground Lug	Zinc	8		100 VAC 400 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.18

Description

General part information

JL04V-6A Series

22 (21 + PE) Position Circular Connector Plug, Male Pins Solder Cup
